Techniflo PX, PS, PS-F Series Magnetic Drive Pumps

This Techniflo range of mag-drive pumps offers leak-free operation, suitable for corrosive or hazardous chemical pumping.

PX, PS & PS-F series vary based on materials of construction.

  • PX Series/PS Series: polypropylene construction, maximum fluid temperature 60 ºC
  • PS-F Series: ETFE Teflon construction, max fluid temperature 90 ºC
10PX - flow rate up to 10 L/min, discharge pressure up to 1.4 m

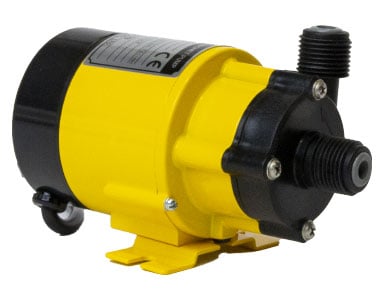

10PX

The 10PX Techniflo magnetic drive pump achieves a flow rate up to 10 L/min, and a maximum discharge pressure up to 1.4 m.

Further features of the 10PX include:

  • suitable for liquids up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports are available

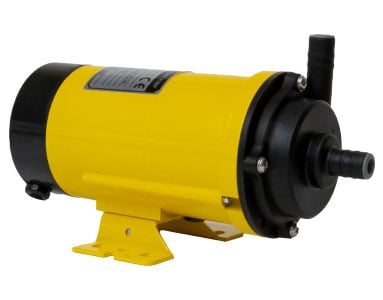

30PX - flow rate up to 15 L/min, discharge pressure up to 2.1 m
30PX

This Techniflo model 30PX mag-drive pump achieves a flow rate up to 15 L/min and a maximum discharge pressure up to 2.1 m.

Additional features of the 30PX include:

  • suitable for liquids up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • threaded ports are available
40PX - flow rate up to 25 L/min, discharge pressure up to 2.6 m
30PX

The 40PX mag-drive pump achieves a flow rate up to 25 L/min and a maximum discharge pressure up to 2.6 m.

Additional features of the 40PX include:

  • can pump media up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • threaded ports are available
50PX-Z - flow rate up to 9 L/min, discharge pressure up to 4.6 m
30PX

This Techniflo Model 50PX-Z achieves a flow rate up to 9 L/min and a maximum discharge pressure up to 4.6 m.

Further features of the 50PX-Z include:

  • suitable for liquid Temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports are available

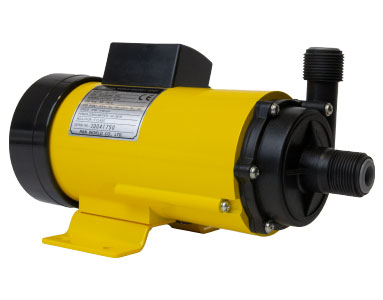

50PX - flow rate up to 30 L/min, discharge pressure 3.5 m
50PX

The Techniflo 50PX mag-drive pump achieves a flowrate up to 30 L/min and a maximum discharge pressure up to 3.5 m.

Additional features of the 50PX include:

  • can pump liquids with a maximum temperature of 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
50PX-X - flow rate up to 55 L/min, discharge pressure up to 2.5 m
50PX

This Techniflo 50PX-X magnetic drive pump achieves a flow rate up to 55 L/min and a max discharge pressure up to 2.5 m.

Further features of the 50PX-X mag-drive pump include:

  • high flow capabilities
  • can pump liquids up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
100PX - flow rate up to 42.5 L/min, discharge pressure up to 4.2 m
50PX

The Techniflo model 100PX achieves a flow rate up to 42.5 L/min and a maximum discharge pressure up to 4.2 m.

Further features of the 100PX include:

  • suitable for liquid temperature up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
100PX-X - flow rate up to 70 L/min, discharge pressure up to 3 m
50PX

Techniflo Model 100PX-X does a flow rate up to 70 L/min and a maximum discharge pressure up to 3 m.

Features of the 100PX-X also include:

  • high flow capabilities
  • suitable for pumping liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
100PX-ZZ - flow rate up to 22 L/min, discharge pressure up to 11 m
50PX

The Techniflo model 100PX-ZZ achieves a flow rate up to 22 L/min and a maximum discharge pressure up to 11 m.

The 100PX-ZZ also features:

  • extra high head capabilities
  • can tolerate liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available

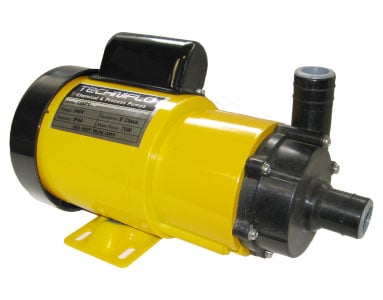

125PS - flow rate up to 75 L/min, discharge pressure up to 3.2 m
125PS

The Techniflo model 125PS achieves a flow rate up to 75 L/min and a maximum discharge pressure up to 3.2 m.

This mag-drive pump also offers:

  • suitable for liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available

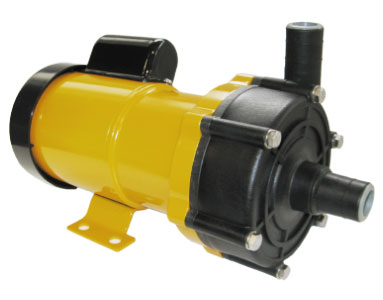

150PS - flow rate up to 60 L/min, discharge pressure up to 5.7 m
150PS

This Techniflo model 150PS achieves a flow rate up to 60 L/min and a maximum discharge pressure up to 5.7 m.

The 150PS also offers operators:

  • suitability for liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
200PS - flow rate up to 85 L/min, discharge pressure up to 7.5 m

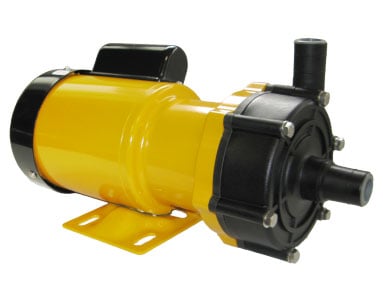

200PS

Techniflo model 200PS achieves a flow rate up to 85 L/min and a maximum discharge pressure up to 7.5 m.

The 200PS also features:

  • handle liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
200PS-3 - flow rates up to 110 L/min, discharge pressure up to 6.8 m

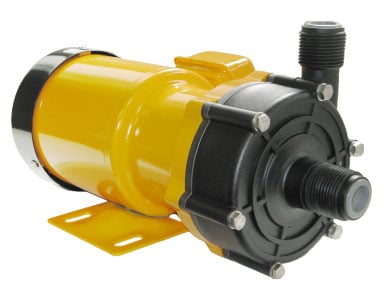

200PS-3

The Techniflo model 200PS-3 achieves a flow rate up to 110 L/min and a maximum discharge pressure up to 6.8 m.

This 200PS-3 mag-drive pump also offers:

  • suitability for liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
200PS-Z - flow rate up to 35 L/min, discharge pressure up to 14 m
200PS

The Techniflo model 200PS-Z achieves a flowrate up to 35 L/min and a maximum discharge pressure up to 14 m.

Further features of the 200PS-Z mag-drive pump include:

  • can handle liquid temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available

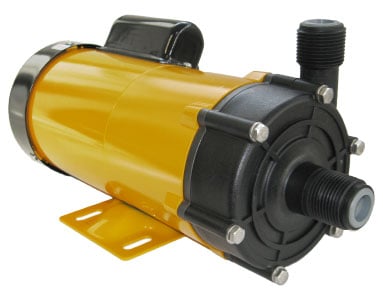

250PS - flow rate up to 82 L/min, discharge pressure up to 11 m
250PS

This Techniflo model 200PS-Z achieves a flowrate up to 82 L/min and a maximum discharge pressure up to 11 m.

Further features of the 200PS-Z include:

  • can handle temperatures up to 90 ºC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
250PS-3 - flow rate up to 120 L/min, discharge pressure up to 11 m
250PS-3

This Techniflo model 250PS-3 achieves a flow rate up to 120 L/min and a maximum discharge pressure up to 11 m.

Further features of the 250PS-3 model include:

  • suitable for liquid temperatures up to 60 ºC
  • Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
250PS-F.T - flow rate up to 81 L/min, discharge pressure up to 11.5 m
250PS-F.T

This Techniflo model 250PS-F.T achieves a flow rate up to 81 L/min and a maximum discharge pressure up to 11.5 m.

Further features of the 250PS-F.T model include:

  • suitable for liquid temperatures up to 90 ºC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available



250PS-IEC.T - flow rate up to 120 L/min, discharge pressure up to 13.5 m

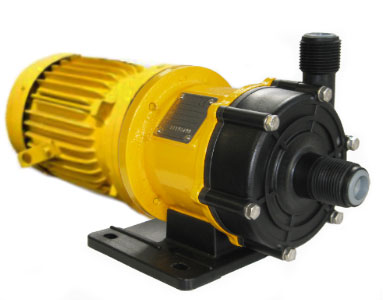

250PS-IEC

This Techniflo model 250PS-IEC achieves a flow rate up to 120 L/min and a maximum discharge pressure up to 13.5 m.

Further features of the 250PS-IEC model include:

  • suitable for liquid temperatures up to 60 ºC
  • Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
250PS-F-IEC.T - flow rate up to 115 L/min, discharge pressure up to 13.8 m
250PS-F-IEC.T

This Techniflo model 250PS-F-IEC achieves a flow rate up to 115 L/min and a maximum discharge pressure up to 13.8 m.

Further features of the 250PS-F-IEC model include:

  • suitable for liquid temperatures up to 90 ºC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
275PS - flow rate up to 105 L/min, discharge pressure up to 14 m
270PS

This Techniflo Model 275PS achieves a flow rate up to 105 L/min and a maximum discharge pressure up to 14 m.

Other features of the 275PS mag-drive pump include:

  • suitable for temperatures up to 60 ºC
  • Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available

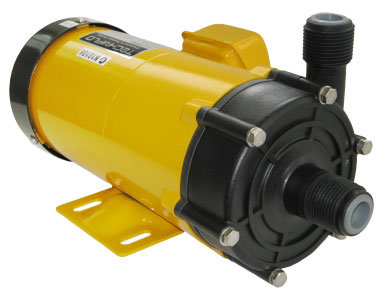

275PS-3 - flow rate up to 105 L/min, discharge pressure up to 14 m
275PS-3

This Techniflo Model 275PS-3 achieves a flow rate up to 105 L/min and a maximum discharge pressure up to 14 m.

Further features of the 275PS-3 mag-drive pump include:

  • suitable for liquid Temperatures up to 60 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
275PS-F - flow rate up to 115 L/min, discharge pressure up to 13.5m
px-series-Jan-08-2021-09-26-37-50-AM

This magnetic drive pump, Techniflo 275PS-F, achieves a flow rate up to 115L/min and a maximum discharge pressure up to 13.5m.

Further features of the 275PS-F include:

  • suitable for liquid temperatures up to 90ºC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
275PS-F-3 - flow rate up to 115 L/min, discharge pressure up to 13.5m

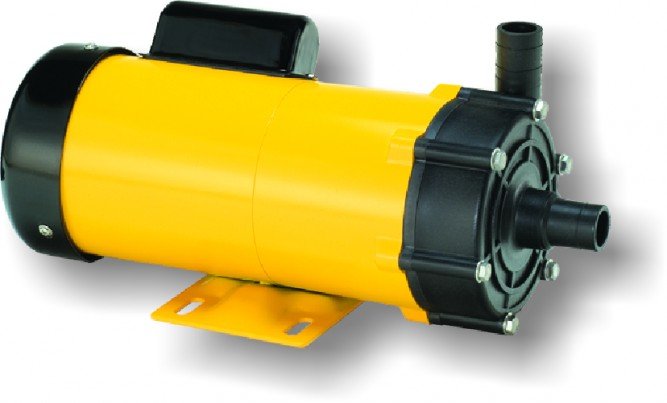

px-series-Jan-08-2021-09-28-07-49-AM

This Techniflo mag-drive pump, 275PS-F-3, achieves a flow rate up to 115L/min and a maximum discharge pressure up to 13.5m.

Further features include:

  • suitable for liquid Temperatures up to 90ºC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available.
  • threaded ports available

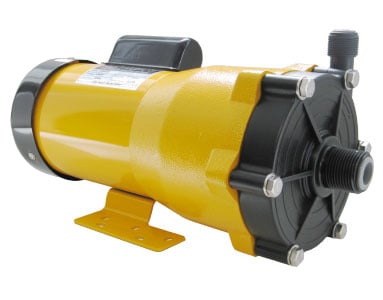

300PS.T - flow rate up to 50 L/min, discharge pressure up to 19.8m
px-series-Jan-08-2021-09-29-17-31-AM

This mag-drive pump, 300PS.T, achieves a flow rate up to 50L/min and a maximum discharge pressure up to 19.8m.

Further features of the 300PS.T include:

  • suitable for liquids up to 60ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available.
  • threaded ports available
300PS-F.T - flow rate up to 50 L/min, discharge pressure up to 20m
px-series-Jan-08-2021-09-30-34-57-AM

This Techniflo model 300PS-F.T achieves a flow rate up to 50L/min and a maximum discharge pressure up to 20m.

Further features include:

  • suitable for pumping liquids up to 90ºC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • threaded ports available
