Verderflex Peristaltic Tube Pumps

A peristaltic tube pump operates on the same working principles as a peristaltic hose pump. The fluid is contained within a tube fitted inside the pump casing. The pumping principle is based on alternating compression and relaxation of the hose or tube, drawing content in and propelling the product away from the pump.
Because only the tube contacts the fluid, you can use single-use tubing to skip cleaning and quickly switch between products.

Features of Global Pumps’ peristaltic tube pumps include:

  • Capable of aggressive media
  • Compact and versatile design
  • Compatible with variable frequency drives
  • Leak-free operation for safety
  • Cost effective pumping solution
  • Kink-free liquid path
  • Food-grade
  • Supports single-use tubing for quick changeovers

GALLERY

No images available

WORKING PRINCIPLE OF PERISTALTIC TUB PUMPS

Peristaltic tube pumps, a type of positive displacement pump, rely on the peristaltic motion of the flexible tube inside the pump casing.  Alternating compression and relaxation of the tube draw media into the pump and propel it outward.

This method ensures repeatable, accurate dosing, and eliminates cross-contamination risks, as the fluid remains entirely within the tube, avoiding contact with moving parts.

APPLICATIONS

Verderflex peristaltic tube pumps are versatile and suitable for various applications, including:

  • Laboratories and pharmaceutical uses such as:
    • Off-line aseptic pumping
    • Bioreactors
    • Buffer & media preparation
    • Fermentation and harvesting
    • Purification and tablet coatings
  • Industrial uses, including:
    • Ink, glue and chemical handling (e.g. acetic acid, chromic acid, fluorosilicic acid)
    • Water treatment
    • Mining
    • Food and beverage applications (e.g. wine, whiskey production)

DOWNLOADS

Rapide

Rapide-R2S Tech Data Sheet (220kb)

Rapide-R3 Tech Data Sheet (301kb)

Rapide-R3S Tech Data Sheet (217kb)

Rapide-R6 Tech Data (312kb)

Rapide-R7S Tech Data Sheet (221kb)

Rapide-R8 Tech Data Sheet (311kb)

Rapide-R12 Tech Data Sheet (317kb)

Rapide-R17S Tech Data Sheet (324kb)


Vantage 5000

Vantage 5000 Tech Data Sheet (976kb)


Ds500

Ds500 Tech Data Sheet (510 KB)


Ds4F

Ds4F Tech Data Sheet (510 KB)

FAQs

Are peristaltic tube pumps reversible?

Yes, these pumps can pump in one direction and be reversed to pump in the other, making them ideal for reducing wastage when handling fluids like ink.

Where do you deliver and what are your estimated shipping times?

The team at Global Pumps understand how important it is for you to receive your order as quickly as possible. That’s why we strive to provide speedy delivery to your door, no matter where you are located across Australia.

Locations Shipping Time Range
Melbourne 1-2 Days
Sydney 2-3 Days
Brisbane 2-4 Days
Perth 2-4 Days
Adelaide 1 Day
Kalgoorlie 3-5 Days
Mt Isa 3-5 Days

PRODUCT INFORMATION

Verderflex peristaltic tube pumps are ideal for precision pumping and dispensing solutions, especially in pharmaceutical and laboratory applications. Their design ensures accuracy, speed and user-friendly operation, making them ideal for dispensing delicate, viscous, corrosive, shear sensitive or abrasive fluids.

A key advantage is that the fluid only contacts the tubing, which can be replaced after each use. This means less cleaning, faster product changeovers, and a much lower risk of contamination—perfect for strict hygiene requirements.

Global Pumps offers a comprehensive range of peristaltic tube pumps, tailored to diverse industries.

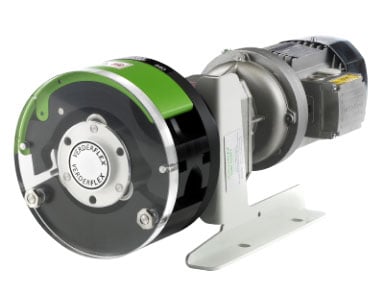

Verderflex Rapide Series

Verderflex Rapide Series

The Verderflex Rapide peristaltic tube pumps offer reliable and cost-effective pumping solutions for industrial applications. These pumps excel as low flow dosing pumps, handling viscous, abrasive and chemically aggressive media with total containment and leak-free operation.

Key features of the Verderflex Rapide peristaltic tube pump include:

  • Flow rate up to 17 L/min
  • Pressure range up to 2 bar
  • Integration with third-party equipment such as printing presses
  • Compatibility with variable frequency drives (VFDs)
  • Simple, tool-less tube changeover
  • Multiple pumping head options.

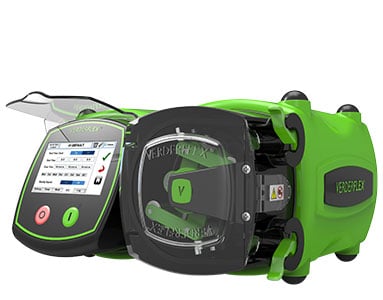

Verderflex Vantage 5000

Verderflex Vantage 5000

The Verderflex Vantage 5000 peristaltic tube pump stands out for its high discharge pressures and superior precision dosing. This advanced peristaltic tube pump is suitable for handling abrasive slurries, high solid content, and demanding suction lift requirements in industrial, mining, and sewage applications. Additionally, it is suitable for liquid handling applications within the water treatment, pharmaceutical and food and beverage industries.

The Vantage 5000 achieves up to twice the flow rate of other brands, with a maximum of 6600 mL/min, and pressures up to 7 bar. Its precision stepper motor offers a 4000∶1 speed control ratio, supporting up to 30 separate projects.

Features of the Vantage 5000 include:

  • Advanced touch screen controls
  • User friendly, intuitive menus
  • Maximum flow rate: 6600 mL/min, 396 L/hr
  • High-precision stepper motor dosing 4000∶1 speed control ratio
  • USB interface for pump back-up and job transfer
  • Remote control options: analogue, digital & BUS control.

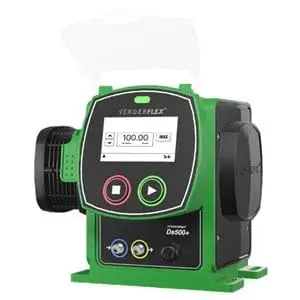

Verderflex Ds500

Verderflex Ds500

The Verderflex Ds500 metering and dosing pump is designed to challenge traditional pumping solutions, offering superior accuracy and cost savings for fluid and chemical transfer applications. By reducing both chemical usage and maintenance costs, this pump improves efficiency and minimises downtime with tool-free servicing.

Key benefits of the DS500:

  • Precise flow control from 0.1 to 500 mL/min, handling pressures up to 7 bar.
  • Fast, tool-free tube replacement to reduce downtime and ensure continuous operation.
  • Exceptional dosing accuracy with ±1% repeatability and reduced pulsation.
  • Valve-free design eliminates clogging, degassing, and provides abrasion resistance.
  • Maximum temperature of 70 °C.
  • Quick and easy tool-free cartridge changes for minimal maintenance and service time.
VF-Ds4F

Verderflex Ds4F

The Ds4F peristaltic tube pump offers exceptional flexibility, allowing you to easily handle a variety of chemicals and materials by using different tube sizes and materials within the same pump. Ideal for precise and consistent liquid dosing, it’s perfect for industries like water treatment, mining, and pharmaceuticals. With flow rates ranging from 1 to 4,000 mL/min and pressures up to 4 bar, this pump is built to deliver high performance. Featuring IP66/Type 4X protection, IoT connectivity, and reversible operation, it excels in harsh environments. Its low-maintenance design minimises downtime and reduces long-term operating costs.
