Hand Operated

Drum Pumps

Hand-operated drum pumps offer operators easy-to-use construction with little to no effort required for fluid transfer.

Features include:

  • ability to pump hazardous and flammable liquids
  • multiple flow rates available depending on application
  • variety of materials of construction available
TP-02 - flow rate 0.3, 0.37 or 0.45 L/stroke

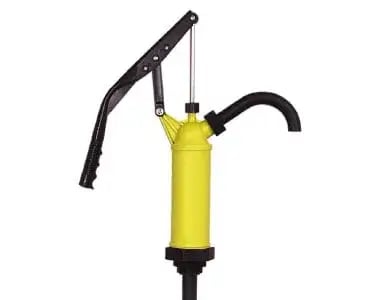

TP-02

The TP-02 is suitable for pumping oils, diesels, alcohol up to a maximum of 50%, anti-freezing liquid, water plus water-based chemicals and alkalis. It is constructed in polypropylene, with a stainless steel 316 shaft.

It offers a telescopic suction tube which has a length of 340–900 mm. This drum pump tube is step-less adjustable and has a tube Ø of 40 mm.

This drum pump achieves a flow rate of 0.3, 0.37 or 0.45 L/stroke depending on lever position.

Specifications for the TP-02:

  • polypropylene pump material
  • stainless steel 304 shaft
  • FKM seals
  • pump tube length: 340–900 mm
  • pump tube diameter: max. 40 mm
  • thread adapter: G 2″ and G 1½“
TP-03 - flow rate 0.3, 0.37 or 0.45 L/stroke

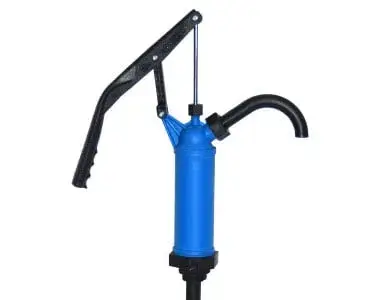

TP-03

The TP-03 hand operated drum pump is suitable for oils, diesels, alcohols up to a maximum of 50%, anti-freezing liquid, water and more. It is constructed in polypropylene, with a steel shaft and NBR/Buna seal.

This hand operated drum pump offers a telescopic suction tube which has a length of 340–900 mm. This pump is step-less adjustable and has a tube Ø of 40 mm. Pump housing with drum adapters G 2”/G 1½”.

This hand operated drum pump achieves a flow rate of 0.3, 0.37 or 0.45 L/stroke depending on the lever position

Specifications for the TP-03:

  • polypropylene pump material
  • tool steel shaft
  • NBR seals
  • pump tube length: 340–900 mm
  • pump tube diameter: max. 40 mm
  • thread adapter: G 2″ and G 1½“
TP-04 - flow rate up to 0.3 L/stroke

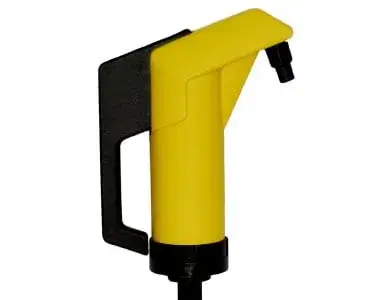

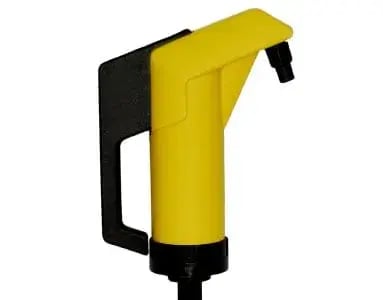

TP-04

The TP-04 hand operated drum pump is suitable for almost all fluids. The ergonomically designed handle and polypropylene pump body guarantees reliable and fast filling of smaller quantities. Seals are constructed in Viton.

It also offers a telescopic suction tube with a length of 480–950 mm.

The TP-04 achieves a flow rate of 0.3 L/stroke.

Specifications for the TP-04:

  • polypropylene pump material
  • viton seals
  • pump tube length: 480–950 mm
  • pump tube diameter: max. 34 mm
  • hose connection: 19mm
  • thread adapter: G 50
TP-05 - flow rate up to 0.6 L/stroke

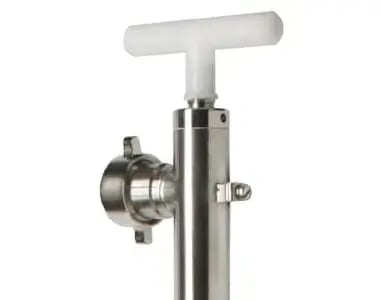

TP-05

The TP-05 hand operated pumps are suitable for flammable media like solvents as well as acetone. This hand operated drum pump achieves a flow rate of between 0.3-0.6 L/min.

It is made from stainless steel 316Ti and is available in two lengths: 700 mm and 1000 mm.

Specifications for the TP-05:

  • stainless Steel 316 Ti pump material
  • PTFE seal
  • pump tube length: 700 or 1000 mm
  • pump tube diameter: 32 mm
  • discharge connections: Arc or hose

This specific hand-operated model has the following accessories available:

  • discharge arc
  • 3/4" hose connection
  • 1" hose connection
  • barrel adaptor
TP-07 - flow rate up to 20 L/min

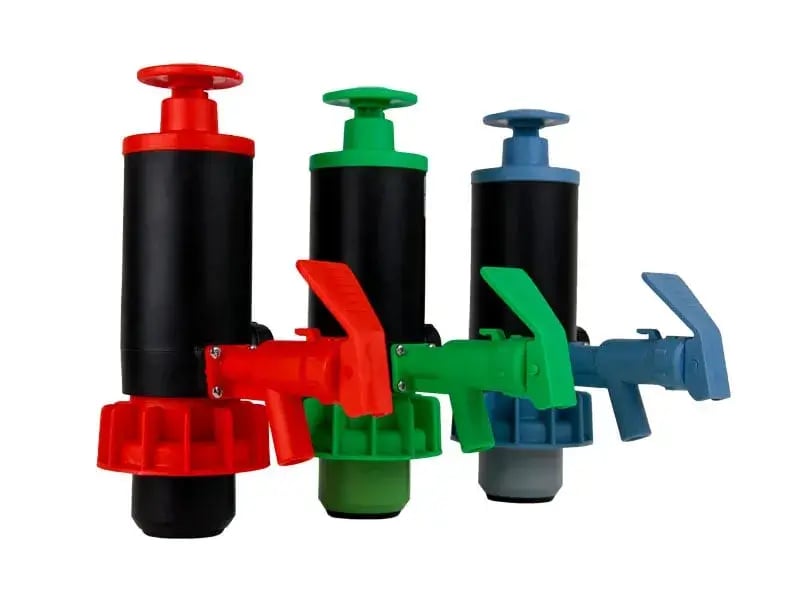

TP-07

The TP-07 hand pump offers precise dispensing
by pumping air into the drum or container and
then pressing the lever for safe decanting.

Pump can also be used as a syphoning pump
by keeping the lever in the ‘on’ position.

Specifications for the TP-07:

  • pump material:polypropylene, 316 SS and PVC
  • seal: EPDM (red), FKM (green), NBR (blue)
  • pump tube length: 4 x 250 mm
  • pump tube diameter: max. 31 mm
  • temperature:  max. 40 ºC
  • viscosity: max. 40 mPas
  • container size: 20-205 L (44 gallon)

This specific hand-operated model has the following accessories available:

  • transfer hose: EPDM, FKM, NBR
TP-08 - flow rate up to 0.3 L/min

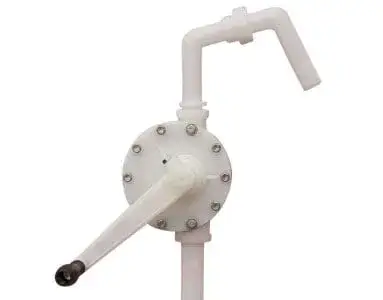

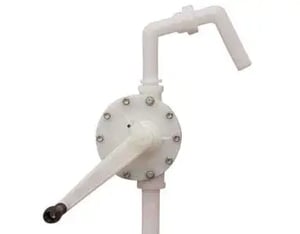

TP-08

The TP-08 is constructed from PVDF (polyvinylidene fluoride) with PTFE seals. Comes complete with discharge arc and drum adaptor G 2".

This hand operated drum pump offers operators a flow rate of 0.3 L/min.

Specifications for the TP-08:

  • PVDF pump material
  • PTFE seals
  • pump tube length: 3 x 35 cm
  • discharge connections: Arc

Regular lubrication required.

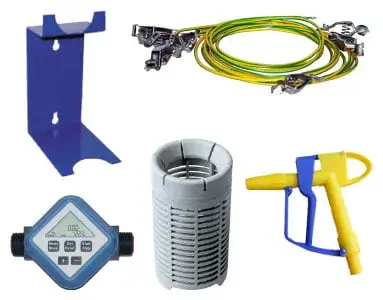

Accessories for hand operated drum pumps
Techniflo-hand-operated-accessories

The following accessories are available for your hand-operated drum pump:

  • bonding groundset (1 cables with clamps)
  • wall hanger for barrel pump
  • strainer, available in polypropylene or stainless steel
  • nozzle, multiple options available
  • flowmetres (electronic), multiple options available
  • SMART pump
    TP-180 + FM120 PP MO1 + electronic kit to fit into handle of motor or into remote switch
    TP-280 + FM120 PP MO1 + electronic kit to fit into handle of motor or into remote switch
  • nozzle kit: nozzle + 2 m hose, multiple options available
Learn more about the hand operated drum pumps available from Global Pumps

Handling dangerous liquids with a hand-operated drum pump

Hand-operated drum pumps are used to decanter or transfer combustible, corrosive or hazardous fluids for added caution and control - with the ability to work at a delivery rate that suits you.

Predominantly used across the chemical and mining industries, these manual pumps are appropriate for filling small containers from larger containers such as 20 L or 200 L drums. The size of the container will determine the pump tube length required, so we provide a range of options to accommodate your use.

Recommended hand-operated drum pumps for 20 L drums

Our recommended 20 L drum pump is the Techniflo TP-05 or TP-07. Both options are suitable for use in drums up to 205 L, giving you greater capacity with industry-leading technology. The TP-05 is a stainless steel model that comes in either 700 mm or 1000 mm, depending on your application, and is designed with PTFE sealing that's made to withstand aggressive substances.
