Electric Drum Pumps

Electric drum pumps provide the effective transfer of fluids from varying drums and IBCs.

The Techniflo range of drum pumps are suitable for low viscous and low-specific gravity liquids.

Further features of these electric-driven drum pumps include:

  • suitable for liquids with specific gravity up to 1.3
  • flow rate up to 200 L/min
  • head up to 37 m
  • suitable for light acids and alkalis



TP-140 - flow rate up to 49 L/min

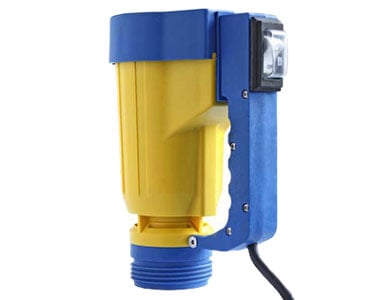

TP-140

The Techniflo TP-140 electric drum pump achieves a maximum flow rate of 49 L/min. It can handle products with a viscosity of up to 400 mPas.

Other features of the TP-140 include:

  • pump tube types: PP, PVDF or SS 316Ti
  • head rotor / impeller (m): 10 / 23 max
  • motor power: 450 universal motor
  • motor voltage (V/Hz): 240 / 50
  • tube lengths (mm): 500, 700, 1000, 1200
  • tube diameter (mm): 25, 32, 41

The TP-140 is suitable for the following applications:

Chemical

  • drum decanting
  • drum transfer
  • flammable liquid transfer
  • drum and container transfer
  • acids and chemicals
  • oils and hydrocarbons

Food and beverage

  • drum and container transfer

Mining

  • drum and container transfer
  • oils and hydrocarbons
  • acids and chemicals



TP-160 - flow rate up to 82 L/min (rotor) or 61 L/min (impeller)

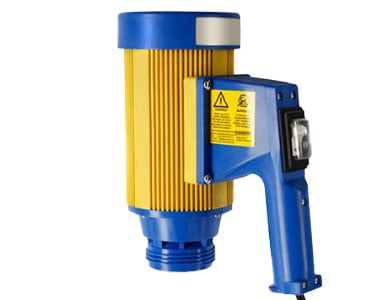

TP-160_180_280

The Techniflo TP-160 electric drum pump achieves a maximum flow rate of 82 L/min (rotor) or 61 L/min (impeller). It can handle products with a viscosity of up to 400 mPas.

Other features of the TP-160 include:

  • pump tube types: PP or SS 316Ti
  • head rotor / impeller (m): 9 / 20 max
  • motor power: 400 universal motor
  • motor voltage (V/Hz): 240 / 50
  • tube lengths (mm): 500, 700, 1000, 1200
  • tube diameter (mm): 25, 28, 32
  • protection class: IP24

The TP-160 is suitable for the following applications:

Chemical

  • drum decanting
  • drum transfer
  • flammable liquid transfer
  • drum and container transfer
  • acids and chemicals
  • oils and hydrocarbons

Food and beverage

  • drum and container transfer

Mining

  • drum and container transfer
  • oils and hydrocarbons
  • acids and chemicals



TP-180 - flow rate up to 150 L/min
TP-160_180_280

The Techniflo TP-180 electric drum pump achieves a maximum flow rate of 150 L/min. It can handle products with a viscosity of up to 500 mPas.

Other features of the TP-180 include:

  • pump tube types: PP, PVDF or SS 316Ti
  • head rotor / impeller (m): 8 / 21 max
  • motor power: 600 universal motor
  • motor voltage (V/Hz): 240 / 50
  • tube lengths (mm): 1000, 1200
  • tube diameter (mm): 41

The TP-180 is suitable for the following applications:

Chemical

  • drum decanting
  • drum transfer
  • flammable liquid transfer
  • drum and container transfer
  • acids and chemicals
  • oils and hydrocarbons

Food and beverage

  • drum and container transfer

Mining

  • drum and container transfer
  • oils and hydrocarbons
  • acids and chemicals



TP-280 - flow rate up to 200 L/min
TP-160_180_280

The Techniflo TP-280 electric drum pump achieves a maximum flow rate of 150 L/min. It can handle products with a viscosity of up to 1000 mPas.

This electric drum pump is suitable for medium viscous and medium specific gravity liquids.

Other features of the TP-280 include:

  • pump tube types: PP, PVDF or SS 316Ti
  • head rotor / impeller (m): 14 / 28 max
  • motor power: 800 universal motor
  • motor voltage (V/Hz): 240 / 50
  • tube lengths (mm): 1000, 1200
  • tube diameter (mm): 41

The TP-280 is suitable for the following applications:

Chemical

  • drum decanting
  • drum transfer
  • flammable liquid transfer
  • drum and container transfer
  • acids and chemicals
  • oils and hydrocarbons

Food and beverage

  • drum and container transfer

Mining

  • drum and container transfer
  • oils and hydrocarbons
  • acids and chemicals



TP-380 - flow rate up to 112 L/min (rotor) or 74 L/min (impeller)

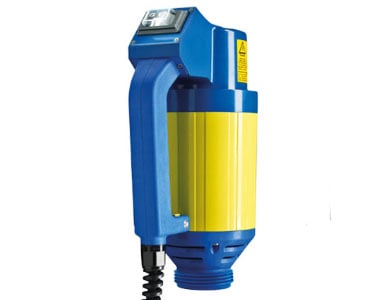

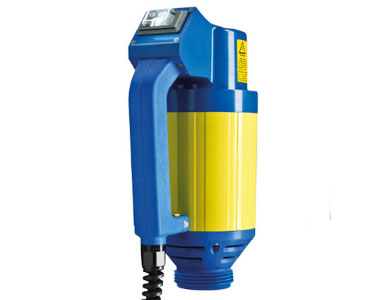

TP-380

The Techniflo TP-380 electric drum pump achieves a maximum flow rate of 112 L/min (rotor) or 74 L/min (impeller) maximum. It can handle products with a viscosity of up to 1000 mPas.

This electric drum pump is suitable for medium viscous and medium specific gravity liquids.

Other features of the TP-380 include:

  • pump tube types: PP, PVDF or SS 316Ti
  • head rotor / impeller (m): 16 / 37 max
  • maximum density (SG): 1.9
  • motor power: 820 universal motor
  • motor voltage (V/Hz): 230 / 50
  • tube lengths (mm): 700, 1000, 1200, 1500
  • tube diameter (mm): 41
  • protection class: IP55

The TP-380 is suitable for the following applications:

Chemical

  • drum decanting
  • drum transfer
  • flammable liquid transfer
  • drum and container transfer
  • acids and chemicals
  • oils and hydrocarbons

Food and beverage

  • drum and container transfer

Mining

  • drum and container transfer
  • oils and hydrocarbons
  • acids and chemicals



TP-480 - flow rate 112 L/min

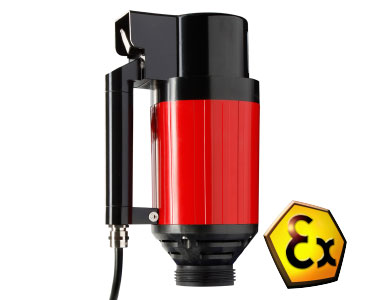

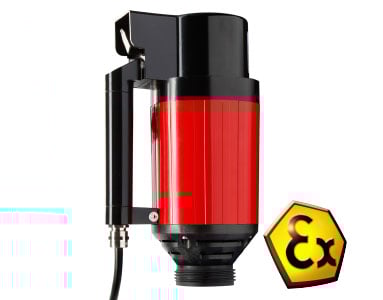

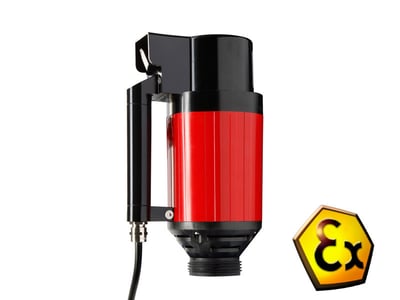

TP-480-Ex

The Techniflo TP-480 electric drum pump achieves a maximum flow rate of 112 L/min  maximum. It can handle products with a viscosity of up to 1000 mPas.

The TP-480 is explosion proof, making it suitable for pumping flammable media or for use in hazardous environments.

This electric drum pump is suitable for medium viscous and medium specific gravity liquids.

Other features of the TP-480 include:

  • pump tube types: SS 316Ti
  • maximum density (SG): 1.9
  • motor power: 825 universal motor
  • motor voltage (V/Hz): 240 / 50
  • tube lengths (mm): 500, 700, 1000
  • tube diameter (mm): 41
  • protection class: IP55
  • explosion proof motor according to II2G Ex dbIIC T6 Gb with EC-type examination certificate BUREAU VERITAS 17 ATEX 1 088 X and IECEx EPS 10.00045

The TP-480 is suitable for the following applications:

Chemical

  • drum decanting
  • drum transfer
  • flammable liquid transfer
  • drum and container transfer
  • acids and chemicals
  • oils and hydrocarbons

Food and beverage

  • drum and container transfer

Mining

  • drum and container transfer
  • oils and hydrocarbons
  • acids and chemicals



Drum Pump Tube Types

When selecting your electric drum pump, it is critical you consider and select the correct components, like pump tubes.

Each pump tube is interchangeable with any electric motor (or other motors). These tubes are suitable for a wide variety of liquids, including viscous, neutral, slightly aggressive and flammable media. In most instances, when you're purchasing an electric drum pump, the pump supplier will advise of an appropriate pump tube.

Global Pumps offers the following drum pump tube types:

  • polypropylene
  • PVDF
  • stainless steel (316Ti)
