PACKO CENTRIFUGAL PUMPS - SERIES FP2

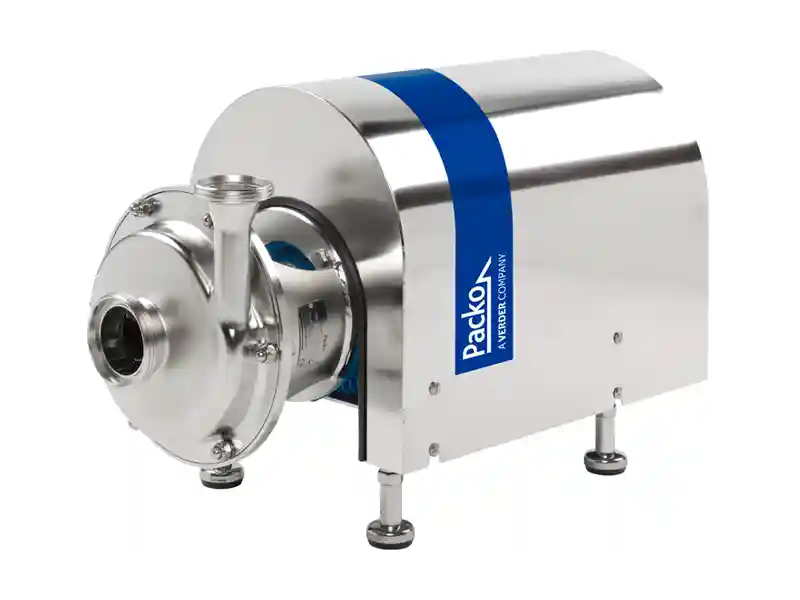

Packo-FP2

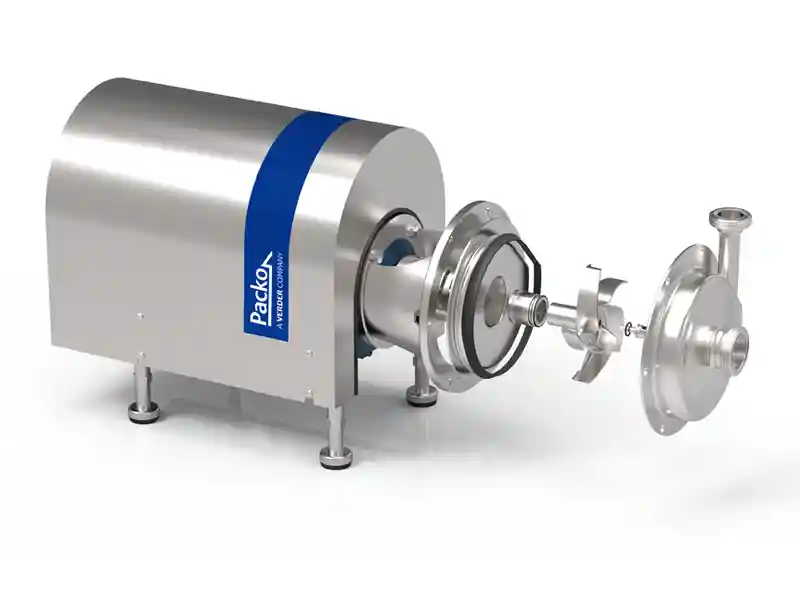

Packo FP2 exploded
Packo-FP2

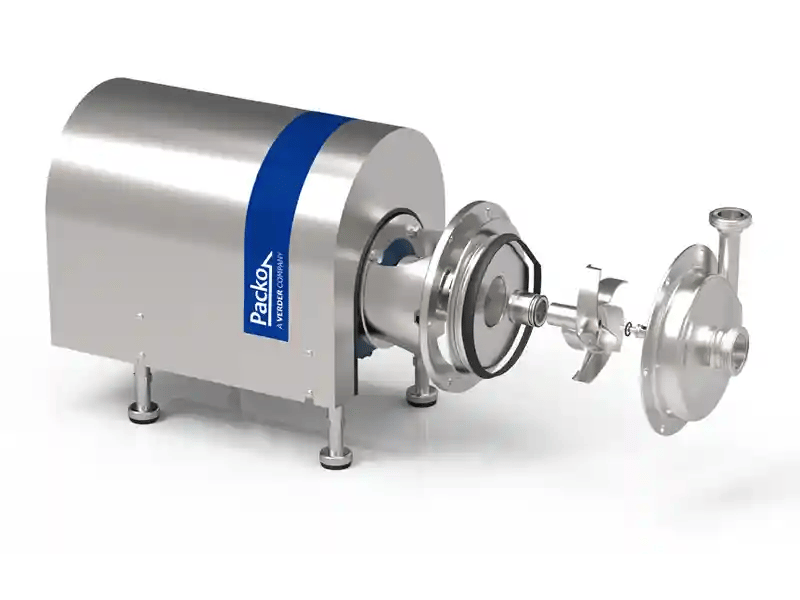

Packo FP2 exploded

Packo centrifugal pumps - series FP2

The Packo process pumps are used in the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc.

Features of the Global Pumps range of Packo centrifugal pump include:

  • effectively manage solids, fibres, foils, and leaves without the concern of clogging
  • electropolished: perfectly cleanable
  • easy to install
  • max. flow: 110 m3/hr
  • max head: 220 m
  • max. product viscosity: 1000 cP
  • max. motor power: 90 kW
  • max. inlet pressure: 13 bar
  • max. temperature: 140 °C
  • max. speed: 3000/3600 RPM
  • available frequency: 50/60 Hz

WORKING PRINCIPLE

While operating similarly to a standard centrifugal pump, this pump distinguishes itself through the integration of highly polished internals. These polished components not only enhance the pump's efficiency by minimizing friction but also streamline thorough cleaning processes. The smooth surfaces facilitate residue removal, ensuring consistent optimal performance. This feature is particularly advantageous in industries with stringent hygiene standards, such as food and pharmaceuticals.

The centrifugal pump's fluid transfer proficiency, combined with its user-friendly design for easy cleaning, positions it as a reliable choice for applications requiring both high performance and strict adherence to cleanliness standards.

APPLICATIONS

The FP2 series of Packo hygienic process pumps is widely utilised in various industries, including dairies, breweries, the beverage industry, and distilleries.

These pumps are an ideal solution for a range of applications:

  • filtration
  • pasteurisation
  • evaporating systems
  • yeast propagation
  • CIP (Clean-In-Place) cleaning systems

Typical applications for these pumps encompass:

  • filtration of beverages such as beer, wine and fruit juices.
  • pumping of substances like yeast, whey and curd.

DOWNLOADS

No downloads available

FAQs

What applications are the centrifugal pumps series FP2 used in?

Typically, the pumps transfer liquids containing fibres and solids from washing or blanching vegetables, potato waste, and the circulation of liquids in digesters.

Can you supply the full turn key package?

Our engineering team is perfectly equipped to help design and source the vast majority of additional components that you may need for your project.

What makes these pumps hygienic?

The level of hygiene of a pump is derived from the surface finish of the internal components.  The more highly polished the internals, the lass places for bacteria to hide.

What standards do the Packo products meet?

EHEDG, 3-A and FDA approvals.

What is the maximum head of a Packo FP Pump?

Our FP Range of pumps can handle up to 220m Head

What is the maximum flow of a Packo FP Pump?

Our FP Range of pumps can deliver up to 400m3/hr

Can I get different connections?

Certainly, we can supply a number of different flanges and connections.

I have a hazardous environment, can we use this pump?

Yes, we can provide Ex Rated motor for your application.

Where do you deliver and what is your estimated shipping times?

Global Pumps provide speedy deliver straight to your site, no matter where you are located in Australia.

Locations Shipping time range
Melbourne 1-2 days
Sydney 2-3 days
Brisbane 2-4 days
Perth 2-4 days
Adelaide 1 day
Kalgoorlie 3-5 days
Mt Isa 3-5 days

PRODUCT INFORMATION

Global Pumps offers a wide range of Packo centrifugal pumps for a variety of applications.

The Packo pump FP2 series features pump casings made from thick, cold-rolled stainless steel 316L plates, ensuring a 100% non-porous, exceptionally smooth construction. Complemented by open investment cast impellers constructed from either 316L or duplex materials, these pumps stand out.

With a crevice-free design and a final surface treatment of electropolishing, the FP2 pump series offers the highest level of cleanliness and hygiene. This makes them a dependable and essential component for your food production process.

Benefits:

  • Energy efficient: Our pumps save on energy costs with high efficiency
  • Prevent cavitation: Low NPSH values reduce the risk of cavitation.
  • Easy to clean: Electropolished for easy and thorough cleaning.
  • Minimal downtime: Simple construction and maintenance mean less downtime.
  • Standard components: Easily replace or upgrade with standard components.
  • Quick installation: Designed for easy and fast installation.
  • Flexible seals: Two seal sizes fit the entire range for maintenance ease.
  • Durable: Our pumps are built tough for long-lasting performance.
