Pneumatic DRUM PUMP

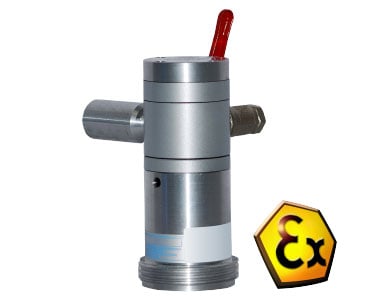

The Techniflo AIR 1 air-operated drum pump is suitable for low viscous and low specific gravity liquids. It can achieve flow rate up to 90 L/min maximum.

Key features of the AIR 1 drum pump include:

• head rotor / impeller (m): 10 / 24 max
• max viscosity (mPas): 400
• construction: stainless steel (SS with mech seal)
• motor power (W): 300 at max 6 bar operating pressure

This air-driven drum pump is suitable for a wide range of applications, including:

Chemical industry

• drum decanting
• drum transfer
• flammable liquid transfer
• drum and container transfer
• acids and chemicals
• oils and hydrocarbons

Food and beverage

• drum and container transfer

Mining

• drum and container transfer
• oils and hydrocarbons
• acids and chemicals

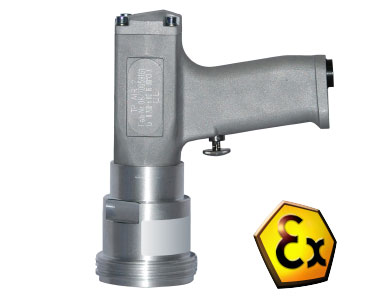

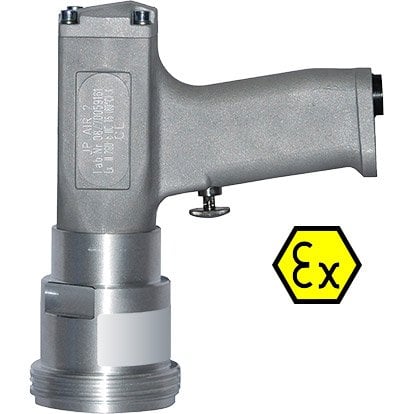

This AIR 2 air-operated drum pump is suitable for low viscous and low specific gravity liquids. It can achieve flow rate up to 120 L/min maximum.

Key features of the AIR 2 drum pump include:

• pump tube types available, PP, PVDF or SS 316 Ti
• head rotor / impeller (m): 10 / 27 max
• max viscosity (mPas): 600
• stainless steel construction with mechanical seal
• motor power (W): 700 at maximum 6 bar operating pressure

The AIR 2 drum pump is suitable for the following applications:

Chemical

• drum decanting
• drum transfer
• flammable liquid transfer
• drum and container transfer
• acids and chemicals
• oils and hydrocarbons

Food and beverage

• drum and container transfer

Mining

• drum and container transfer
• oils and hydrocarbons
• acids and chemicals

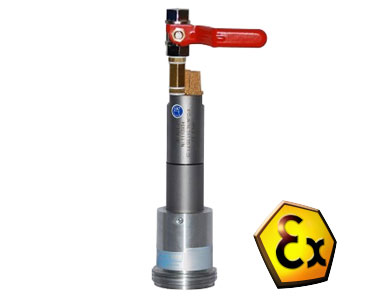

This AIR 3 air-operated drum pump is suitable for low viscous and low specific gravity liquids. It can achieve flow rate up to 120 L/min maximum.

Key features of the AIR 3 drum pump include:

• pump tube types available, PP, PVDF, SS 316 Ti, AI
• head rotor / impeller (m): 10 / 27 max
• max viscosity (mPas): 600
• stainless steel construction with mechanical seal
• motor power (W): 700 at maximum 6 bar operating pressure

The AIR 2 drum pump is suitable for the following applications:

Chemical

• drum decanting
• drum transfer
• flammable liquid transfer
• drum and container transfer
• acids and chemicals
• oils and hydrocarbons

Food and beverage

• drum and container transfer

Mining

• drum and container transfer
• oils and hydrocarbons
• acids and chemicals

Depending on your applications, you may require a specific pump tube. Each pump tube is interchangeable with any pneumatic drum pump, as well as those of other motor types (electric or hand-operated).

These drum pump tubes are suitable for thin liquids through to viscous, neutral, slightly aggressive or flammable liquids.

Global Pumps offer the following drum pump tube types:

• polypropylene
• PVDF
• stainless steel (316Ti)
