Techniflo Magnetic Drive

PW and PW-F Series

These magnetic drive pumps are constructed with either polypropylene or EFTE Teflon. Features of this range include:

  • polypropylene construction can handle maximum fluid temperature 70 oC
  • EFTE Teflon construction are suitable for fluid temperatures up to 90 oC
  • range of bearing materials including carbon, alumina ceramic and silicon carbide
  • optional EPDM casing O-ring available

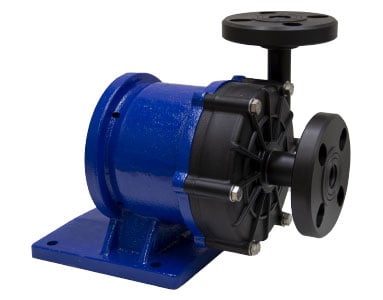

350PW.CV - flow rate up to 140 L/min, discharge pressure up to 15 m
350_351PW.jpg?width=250&name=350_351PW

The Techniflo 350PW offers flows up to 140 L/min and a maximum discharge of up to 15 m.

Other key features of the 350PW include:

  • suitable for liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • high density carbon bearing and ceramic spindle
350PW-F.AV - flow rate up to 130 L/min, discharge pressure up to 15 m
350_351PW.jpg?width=250&name=350_351PW-1

The Techniflo 350PW-F.AV achieves flow rates up to 130 L/min with a maximum discharge pressure of up to 14 m.

Other features of the 350PW-F.AV include:

  • can handle liquid temperatures up to 90 oC
  • EFTE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • high-purity alumina ceramic bearing with silicon carbide spindle
351PW.CV - flow rates up to 135 L/min, discharge pressure up to 23 m
accordition-img1

Techniflo model 351PW-CV achieves flowrates up to 135 L/min and a max discharge pressure up to 23 m.

Other features of the 351PW-CV include:

  • suitable for pumping liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
351PW-F.AV - flow rates up to 150 L/min, discharge pressure up to 22 m
350_351PW

Techniflo model 351PW-F.AV achieves flowrates up to 150 L/min and a max discharge pressure up to 22 m.

Other features of the 351PW-F.AV include:

  • suitable for pumping liquid temperatures up to 90 oC
  • EFTE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • high purity alumina ceramic bearing with silicon carbide spindle

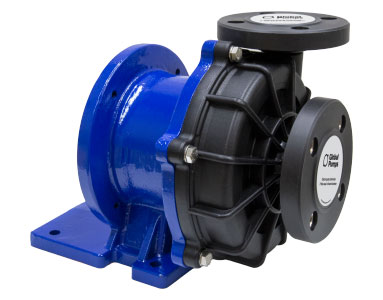

352PW.CV - flow rates up to 200 L/min, discharge pressure up to 30 m
accordition-img1

Techniflo model 352PW-CV achieves flow rates up to 180L/min and a maximum discharge pressure up to 30 m.

Other features of the 352PW-CV include:

  • capable of handling liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
352PW-F.AV - flow rate up to 200 L/min, discharge pressure up to 28 m
350_351PW-2

Techniflo model 352PW-F.AV achieves flow rates up to 200L/min and a maximum discharge pressure up to 28 m.

Other features of the 352PW-F.AV include:

  • capable of handling liquid temperatures up to 90 oC
  • ETFE Teflon casing with viton front casing O-ring. Optional EPDM O-ring is available.
  • high-purity alumina ceramic bearing with silicon carbide spingle
353PW.CV - flow rate up to 240 L/min, discharge pressure up to 34 m
accordition-img1

Techniflo model 353PW.CV achieves flow rates up to 240 L/min and a maximum discharge pressure up to 34 m.

Other features of the 353PW.CV include:

  • capable of handling liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spingle
353PW-F.AV - flow rate up to 250 L/min, discharge pressure up to 32 m
accordition-img1

Techniflo model 353PW-F.AV achieves flow rates up to 250 L/min and a maximum discharge pressure up to 32 m.

Other features of the 353PW-F.AV include:

  • capable of handling liquid temperatures up to 90 oC
  • EFTE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-purity alumina ceramic bearing with silicon carbide spindle

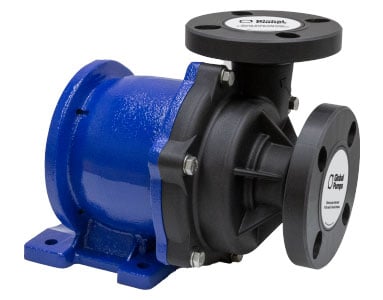

400PW.CV - flow rates up to 215 L/min, discharge pressure up to 11 m
400_401_402_403PW

The Techniflo model 400PW.CV achieves flowrates up to 215 L/min and a max discharge pressure up to 11 m.

Features of Mag-Drive Pumps:
  • can handle liquid Temperatures up to 70 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
400PW-F.AV - flow rates up to 230 L/min, discharge pressure up to 12 m
350_351PW-Jan-07-2021-12-11-49-62-PM

The Techniflo 400PW-F.AV mag-drive pump achieves flow rates up to 260 L/min and a maximum discharge pressure of up to 18.5 m.

Other features of the 400PW-F.AV include:

  • can pump liquid temperatures up to 90 oC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • high-purity alumina ceramic bearing with silicon carbide spindle
401PW.CV - flow rates up to 360 L/min, discharge pressure up to 17 m
400_401_402_403PW

The Techniflo model 401PW.CV achieves flowrates up to 360 L/min and a max discharge pressure up to 17 m.

Features of Mag-Drive Pumps:
  • can handle liquid Temperatures up to 70 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
401PW-F.AV - flow rates up to 260 L/min, discharge pressure up to 18.5 m
350_351PW-Jan-07-2021-12-11-49-62-PM

The Techniflo 401PW-F.AV mag-drive pump achieves flow rates up to 260 L/min and a maximum discharge pressure of up to 18.5 m.

Other features of the 401PW-F.AV include:

  • can pump liquid temperatures up to 90 oC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring is available
  • high-purity alumina ceramic bearing with silicon carbide spindle
402PW.CV - flow rates up to 480 L/min, discharge pressure up to 25m
accordition-img1

The Techniflo 402PW.CV mag-drive pump achieves flow rates up to 480 L/min and a maximum discharge pressure of up to 25m.

Other features of the 402PW.CV include:

  • can pump liquid temperatures up to 70oC
  • polypropylene casing with Viton front casing with O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
402PW-F.AV - flow rates up to 440 L/min, discharge pressure up to 25 m
accordition-img1

The Techniflo 402PW-F.AV mag-drive pump achieves flow rates up to 440 L/min and a maximum discharge pressure of up to 25 m.

Other features of the 402PW-F.AV include:

  • can pump liquid temperatures up to 90 oC
  • ETFE Teflon casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-purity alumina ceramic bearing with silicon carbide spindle
403PW.CV - flow rate up to 535 L/min, discharge pressure up to 26 m
accordition-img1

The Techniflo 403PW.CV magnetic drive pump offers flow rates up to 535 L/min and a maximum discharge pressure up to 26 m.

Other features of the 403Pw.CVV include:

  • suitable for liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle

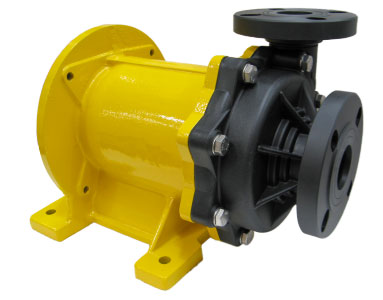

405PW.CV – flow rates up to 510 L/min, discharge pressure up to 32 m
accordition-img1

The Techniflo 405PW.CV offers flow rates up to 510 L/min and a maximum discharge pressure up to 32 m.

Other features of the 405PW.CV include:

  • suitable for liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
505PW - flows up to 700 L/min, discharge pressure up to 34 m
350_351PW-Jan-07-2021-12-22-36-30-PM

The Techniflo 505PW magnetic drive pump achieves flow rates up to 700 L/min and a maximum discharge pressure of up to 34 m.

Other features of the 505PW include:

  • can handle liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring is available
507PW - flow rates up to 960 L/min, discharge pressure up to 32m
350_351PW-Jan-07-2021-12-24-11-48-PM

The Techniflo 507PW mag-drive pump can achieve flows up to 950 L/min and a maximum discharge up to 32 m.

Other key features of the 507PW include:

  • suitable for liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring is available.

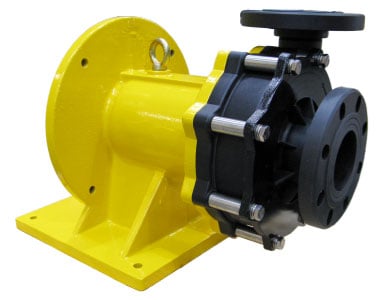

655PW.CV - flow rates up to 800 L/min, discharge pressure up to 23 m
350_351PW-Jan-07-2021-12-27-14-60-PM

The Techniflo model 655PW.CV achieves flow rates up to 800L/min and a maximum discharge pressure up to 23 m.

Features of Mag-Drive Pumps:
  • capable of pumping mediums with a  temperature up to 70 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
657PW.CV - flow rates up to 1,000 L/min, discharge pressure up to 27 m
350_351PW-Jan-07-2021-12-27-14-60-PM

The Techniflo model 657PW.CV achieves flow rates up to 1000 L/min and a maximum discharge pressure up to 27 m.

Features of Mag-Drive Pumps:
  • capable of pumping mediums with a  temperature up to 70 ºC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
6510PW.CV - flow rates up to 1,400 L/min, discharge pressure up to 32 m
accordition-img1

The Techniflo 6515PW.CV magnetic drive pump offers flow rates up to 1,400 L/min and a maximum discharge pressure of up to 32 m.

Other features of the 6510PW.CV include:

  • suitable for liquid temperatures up to 70 oC
  • polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • high-density carbon bearing with ceramic spindle
6515PW-C.FV - flow rates up to 1,420 L/min, discharge pressure up to 35 m
accordition-img1

The Techniflo 6515PW-C.FV magnetic drive pump offers flow rates up to 1,420 L/min and a maximum discharge pressure of up to 35 m.

Other features of the 6515PW-C.FV include:

  • suitable for liquid temperatures up to 90 oC
  • EFTE Teflon lined cast iron construction with Viton front casing O-ring. Optional EPDM O-ring available.
