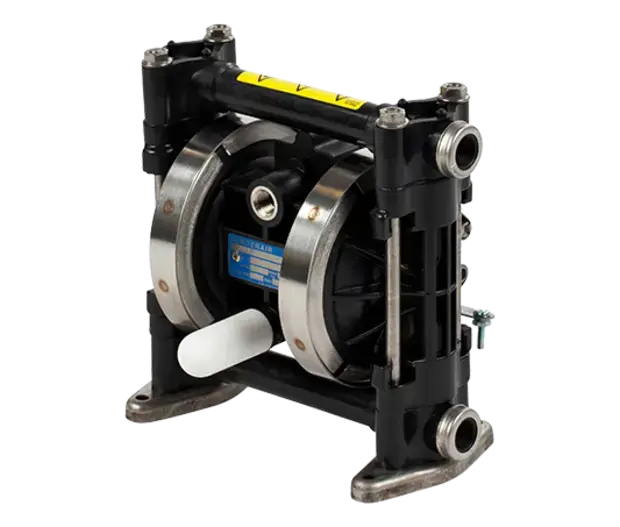

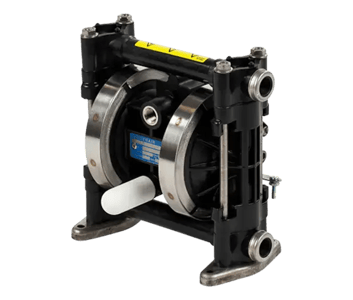

VA10-NON-MET

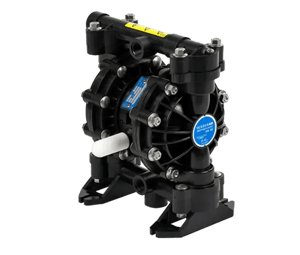

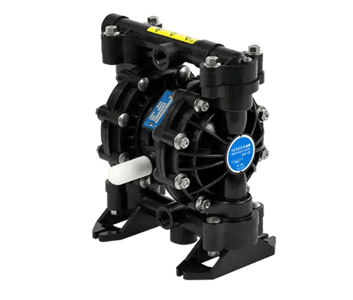

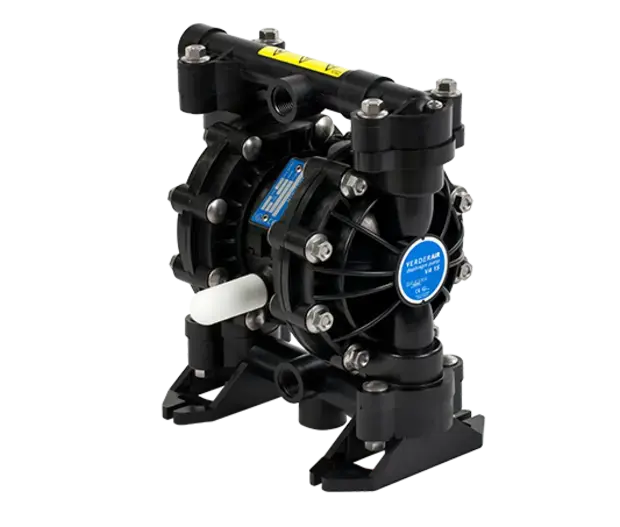

VA15-NON-MET
VA20-MET

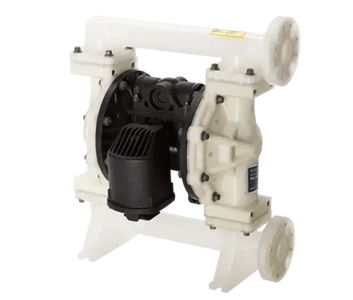

VA25-HE-NON-MET

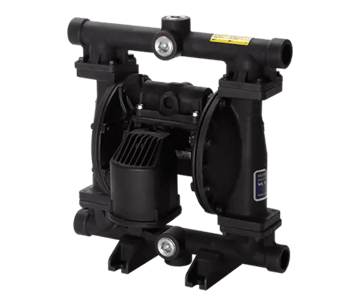

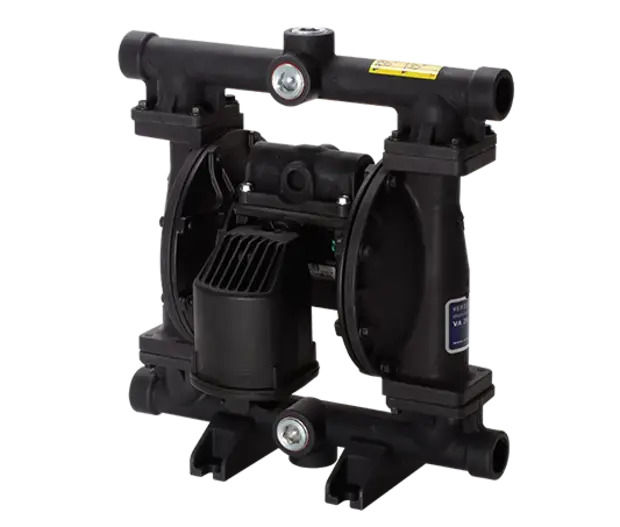

VA25-HE-MET

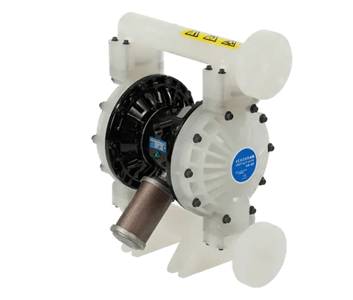

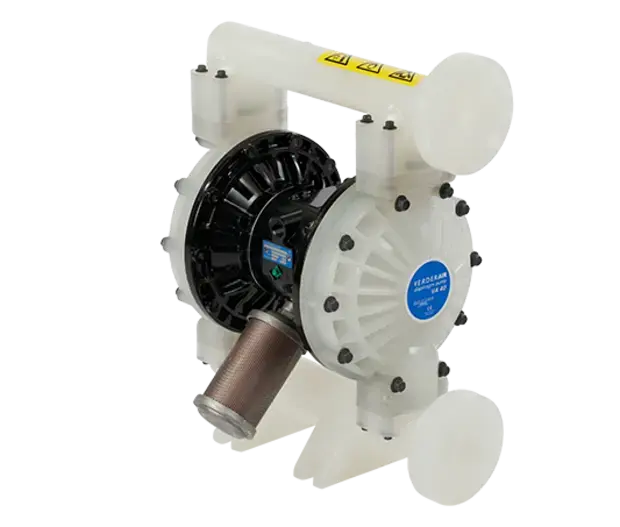

VA40-NON-MET

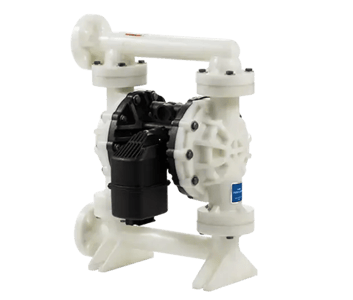

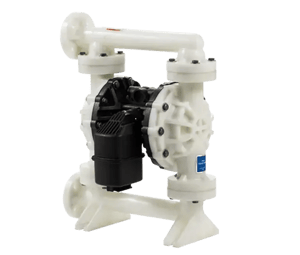

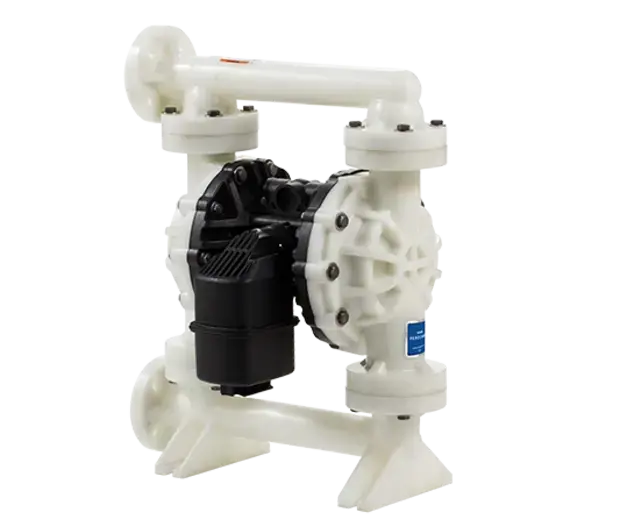

VA40-HE-NON-MET

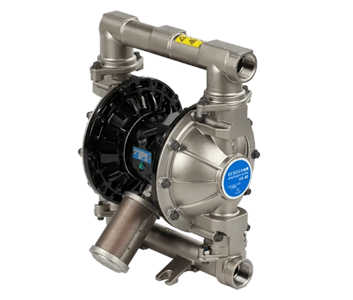

VA40-MET

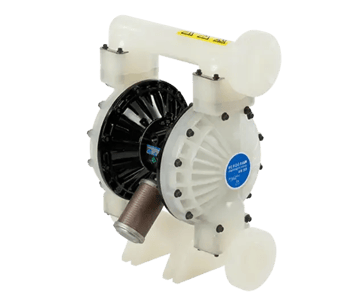

VA50-NON-MET

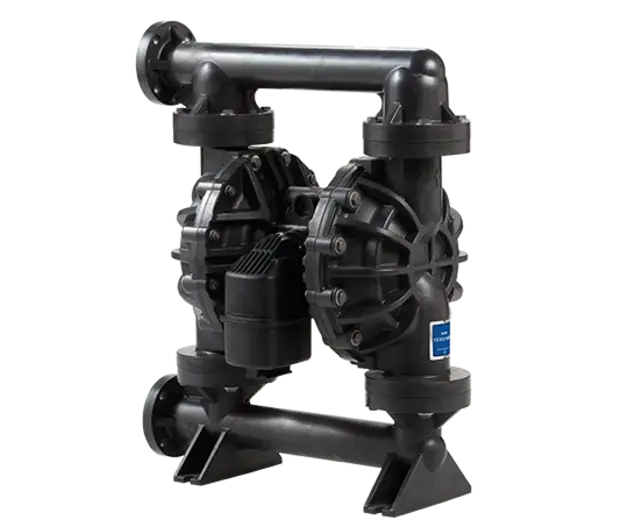

VA50-HE-NON-MET

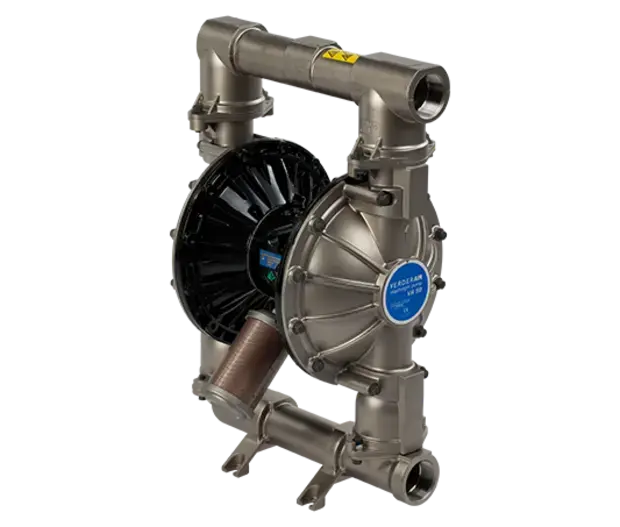

VA50-MET

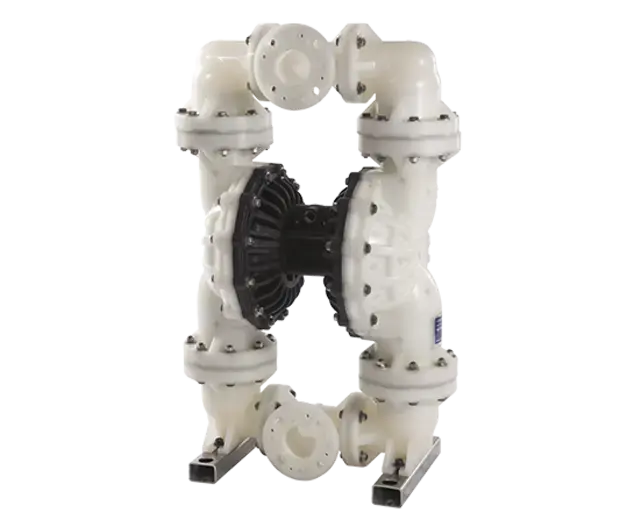

VA80-HE-NON-MET

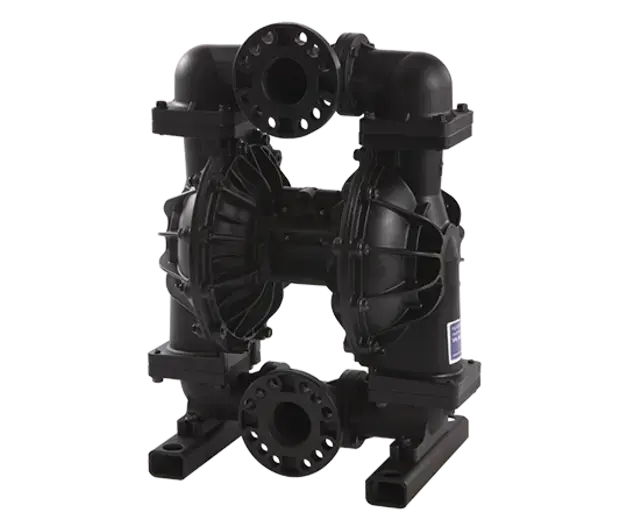

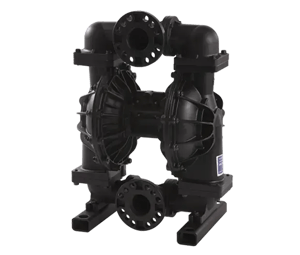

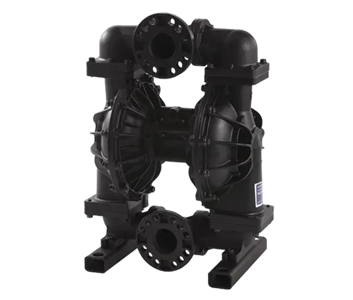

VA80-HE-MET
VA08-NON-MET
VA10-NON-MET
VA15-NON-MET

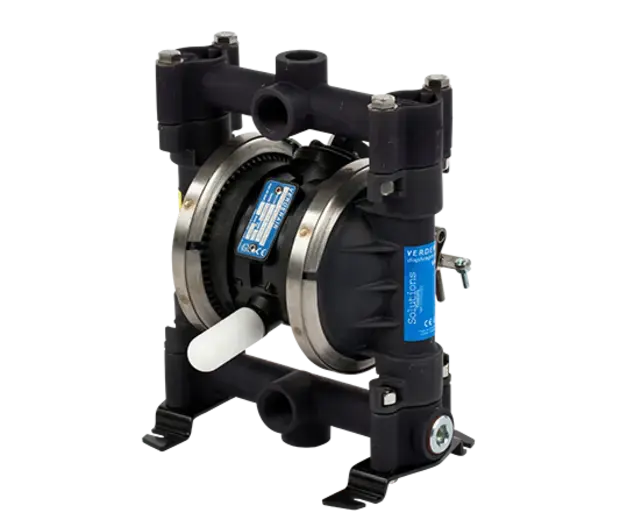

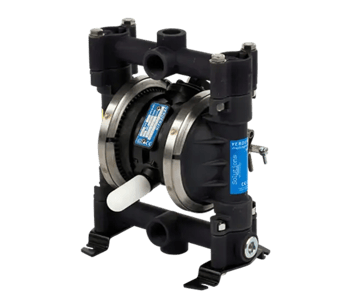

VA20-MET

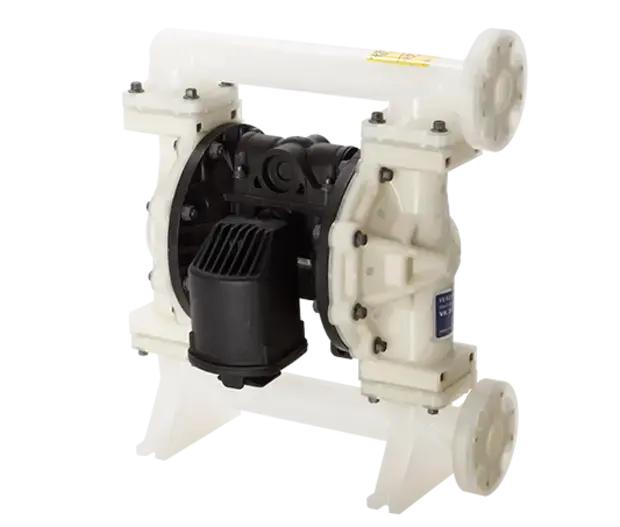

VA25-HE-NON-MET
VA25-HE-MET
VA40-NON-MET
VA40-HE-NON-MET

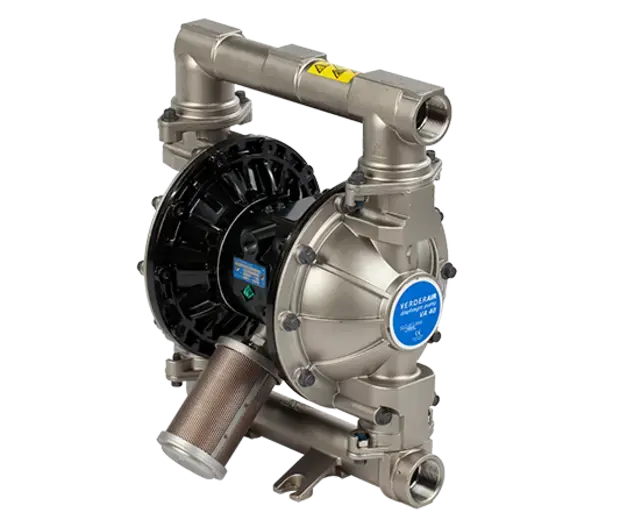

VA40-MET

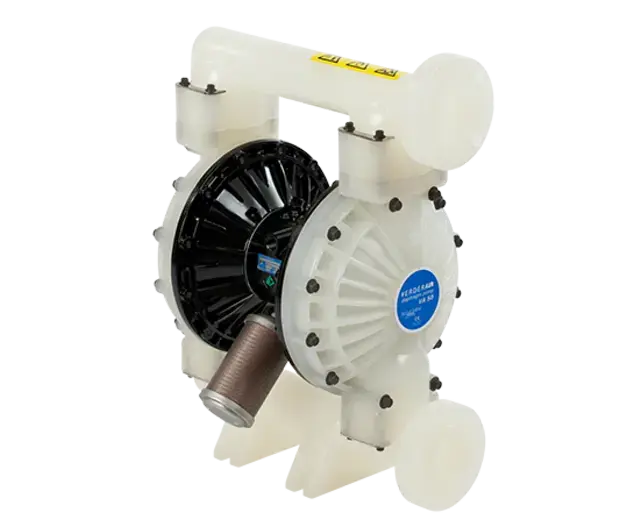

VA50-NON-MET

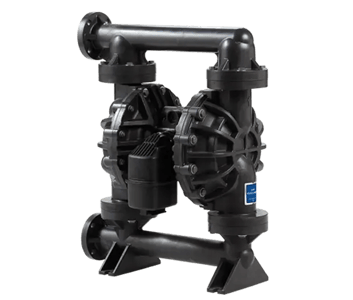

VA50-HE-NON-MET

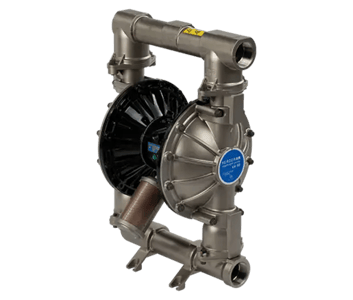

VA50-MET

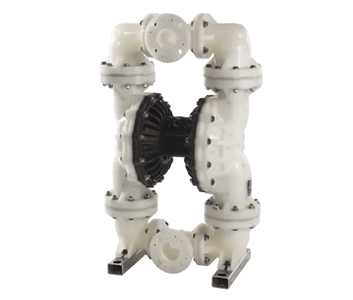

VA80-HE-NON-MET
VA80-HE-MET

VA Series

The Verderair VA series sets the standard for air diaphragm pumps. Efficient air usage lowers overall air consumption, ultimately reducing energy costs.

Features include:

  • wide range of material options.
  • fast-acting air valve technology ensures maximum efficiency.
  • bolted chambers provide secure operation and facilitate easy maintenance.

GALLERY

placeholder_200x200
placeholder_200x200
placeholder_200x200
placeholder_200x200

DOWNLOADS

PRODUCT INFORMATION

Verderair air operated diaphragm (AOD) pumps are the ideal solution for transfering applications that involve more than just liquids. They are particularly well-suited for handling viscous, sticky media, slurries, and solids. The VA series includes a wide range of AOD pumps, available in various materials (metallic, non-metallic, conductive) and drive options (electric, pneumatic) to meet diverse operational needs.

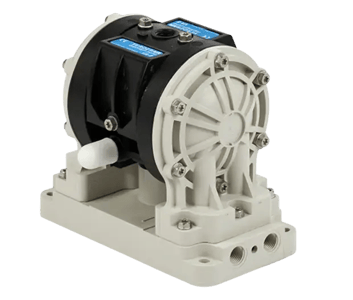

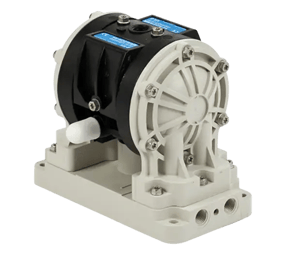

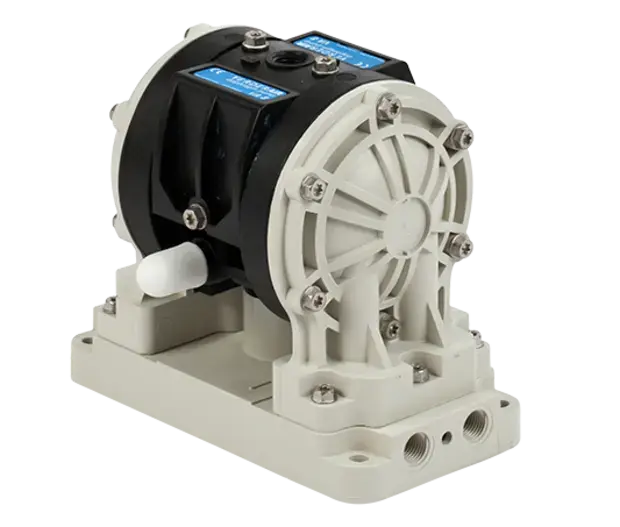

VA08
Max. flow 19 L/min
Max. discharge pressure 7 bar
Air connection 1/4" BSP/NPT
Liquid connection 1/4" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
2.5
4.4
Certificates ATEX
Max. particle size (mm) 1.5
Max. recommended viscosity (mPas) 500


For more information, download the datasheet here

Max. flow 25 L/min
Max. discharge pressure 7 bar
Air connection 1/4" BSP/NPT
Liquid connection 3/8" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
2.1*–2.5
3.7*-6.4
*with PTFE diaphragms
Certificates ATEX
Max. particle size (mm) 1.6
Max. recommended viscosity (mPas) 1000


For more information, download the datasheet here

Max. flow 57 L/min
Max. discharge pressure 7 bar
Air connection 1/4" BSP/NPT
Liquid connection 1/2" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
4.5
7.6
Certificates ATEX
Max. particle size (mm) 2.5
Max. recommended viscosity (mPas) 5000


For more information, download the datasheet here

Max. flow 61 L/min
Max. discharge pressure 7 bar
Air connection 1/4" BSP/NPT
Liquid connection 3/4" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
4.5
7.6
Certificates ATEX
Max. particle size (mm) 2.5
Max. recommended viscosity (mPas) 5000


For more information, download the datasheet here

Max. flow 189 L/min
Max. discharge pressure 8.6 bar
Air connection 1/2" BSP/NPT
Liquid connection Combi-flange DIN PN016/16
Max. suction lift (mWC)
- dry
- wet
4.9
8.8
Certificates ATEX
Max. particle size (mm) 3.2
Max. recommended viscosity (mPas) 10,000


For more information, download the datasheet here

Max. flow 189 L/min
Max. discharge pressure 8.6 bar
Air connection 1/2" BSP/NPT
Liquid connection 1" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
4.9
8.6
Certificates ATEX
Max. particle size (mm) 3.2
Max. recommended viscosity (mPas) 10,000


For more information, download the datasheet here

Max. flow 443 L/min
Max. discharge pressure 8.4 bar
Air connection 1/2" BSP/NPT
Liquid connection Combi-flange DIN PN10/16
Max. suction lift (mWC)
- dry
- wet
2.5
5.5
Certificates ATEX
Max. particle size (mm) 4.8
Max. recommended viscosity (mPas) 15,000


For more information, download the datasheet here

Max. flow 443 L/min
Max. discharge pressure 8.4 bar
Air connection 1/2" BSP/NPT
Liquid connection 1 1/2" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
2.5
5.5
Certificates ATEX
Max. particle size (mm) 6.3
Max. recommended viscosity (mPas) 15,000


For more information, download the datasheet here

Max. flow 462 L/min
Max. discharge pressure 8.6 bar
Air connection 1/2" BSP/NPT
Liquid connection Combi-flange DIN PN10/16
Max. suction lift (mWC)
- dry
- wet
4.9
9.4
Certificates CE
Max. particle size (mm) 6.3
Max. recommended viscosity (mPas) 15,000


For more information, download the datasheet here

Max. flow 568 L/min
Max. discharge pressure 8.4 bar
Air connection 1/2" BSP/NPT
Liquid connection Combi-flange DIN PN10/16
Max. suction lift (mWC)
- dry
- wet
2.5
5.5
Certificates ATEX
Max. particle size (mm) 6.3
Max. recommended viscosity (mPas) 20,000


For more information, download the datasheet here

Max. flow 568 L/min
Max. discharge pressure 8.4 bar
Air connection 1/2" BSP/NPT
Liquid connection 2" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
2.5
5.5
Certificates ATEX
Max. particle size (mm) 6.3
Max. recommended viscosity (mPas) 20,000


For more information, download the datasheet here

Max. flow 757 L/min
Max.discharge pressure 8.6 bar
Air connection 3/4" BSP/NPT
Liquid connection Combi-flange DIN PN10/16
Max. suction lift (mWC)
- dry
- wet
4.9
9.4
Certificates CE
Max. particle size (mm) 9.5
Max. recommended viscosity (mPas) 20,000


For more information, download the datasheet here

Max. flow 1059 L/min
Max. discharge pressure 7 bar
Air connection 3/4" BSP/NPT
Liquid connection Combi-flange DIN PN10/16
Max. suction lift (mWC)
- dry
- wet
4.9
8.5
Certificates CE
Max. particle size (mm) 13
Max. recommended viscosity (mPas) 25,000


For more information,  download the datasheet here

Max. flow 1200 L/min
Max. discharge pressure 8.6 bar
Air connection 3/4" BSP/NPT
Liquid connection 3" BSP/NPT
Max. suction lift (mWC)
- dry
- wet
4.9
8.5
Certificates ATEX
Max. particle size (mm) 13
Max. recommended viscosity (mPas) 25,000


For more information, download the datasheet here

Enquire here for more information or to request a quote:
