PROGRESSIVE CAVITY PUMP

Inoxpa-Kiber-progressive-cavity

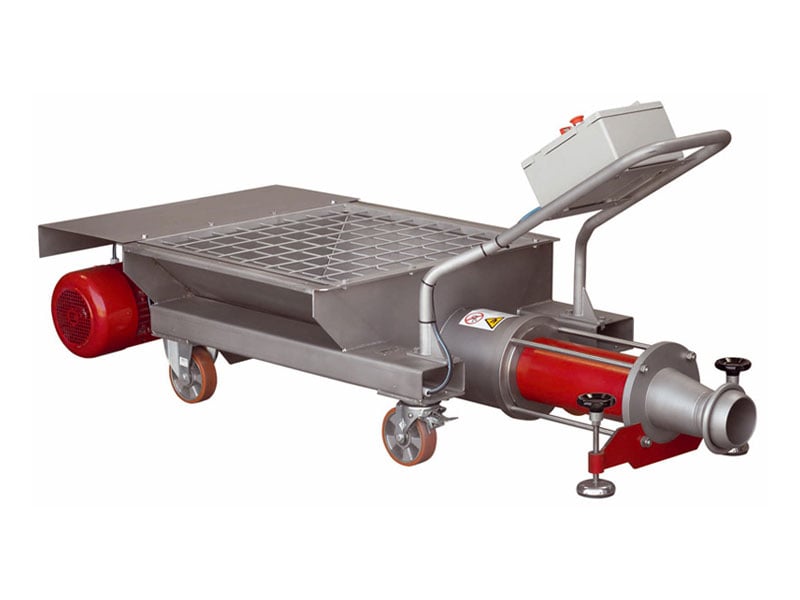

Kiber NTE

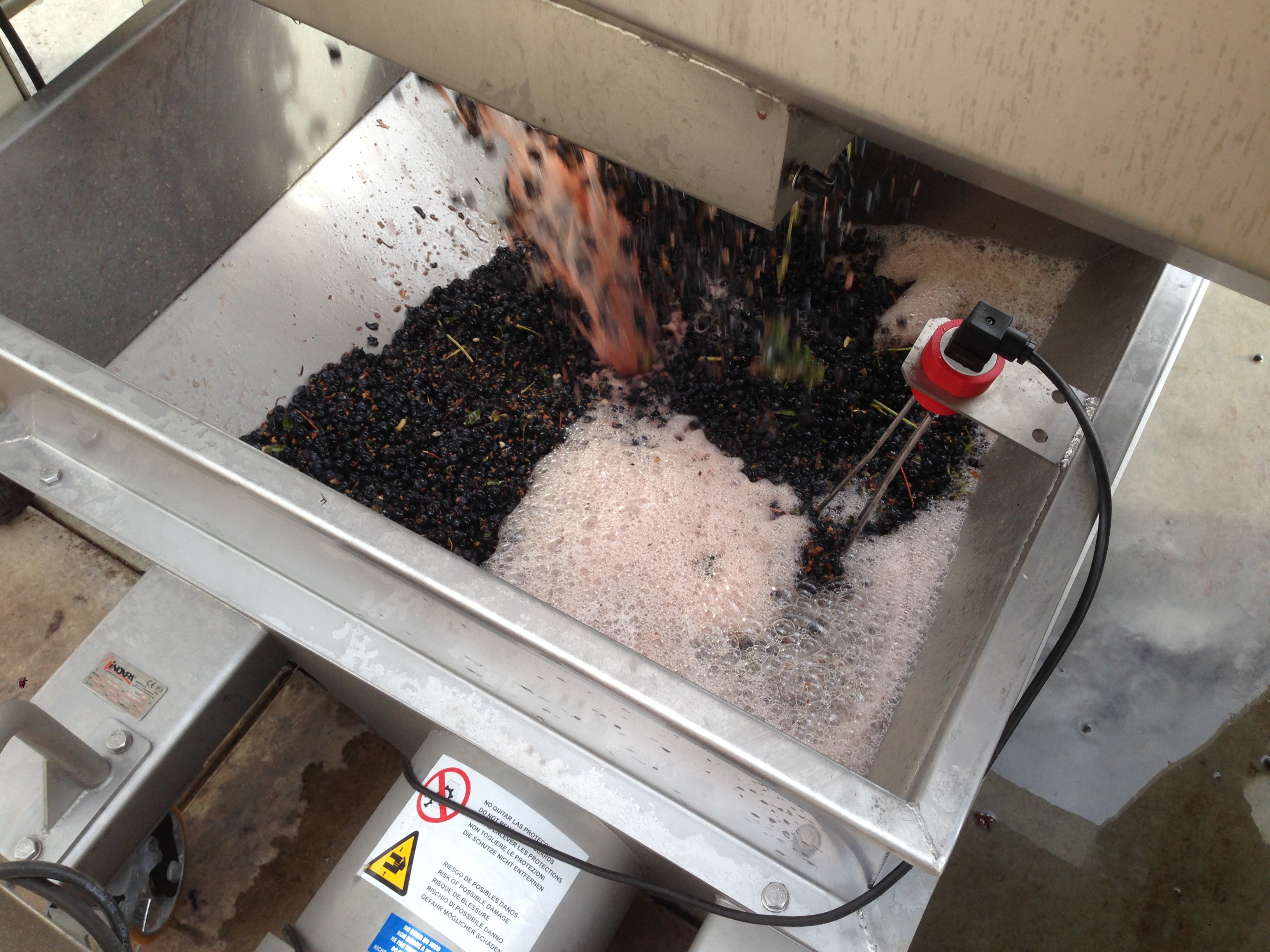

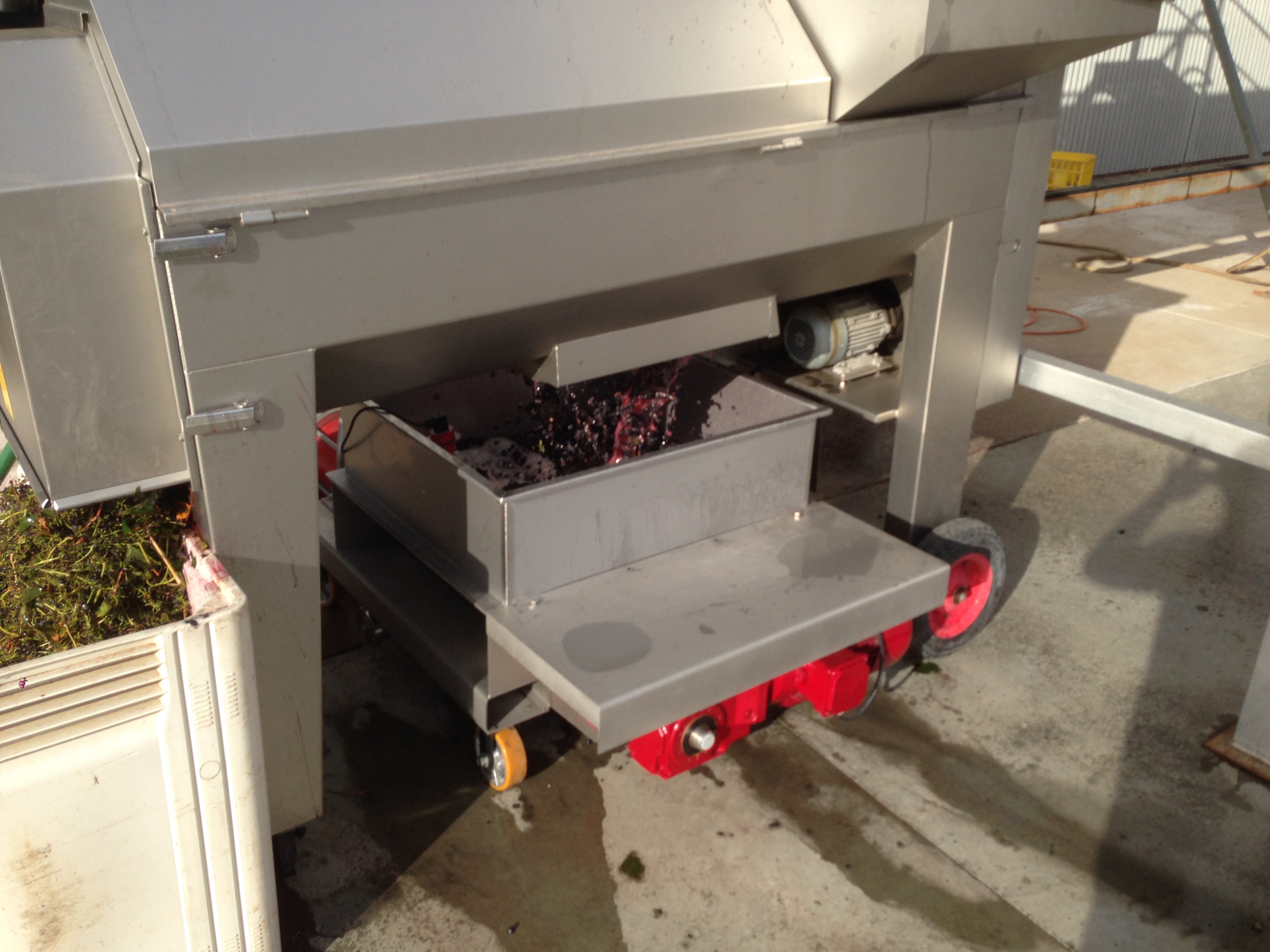

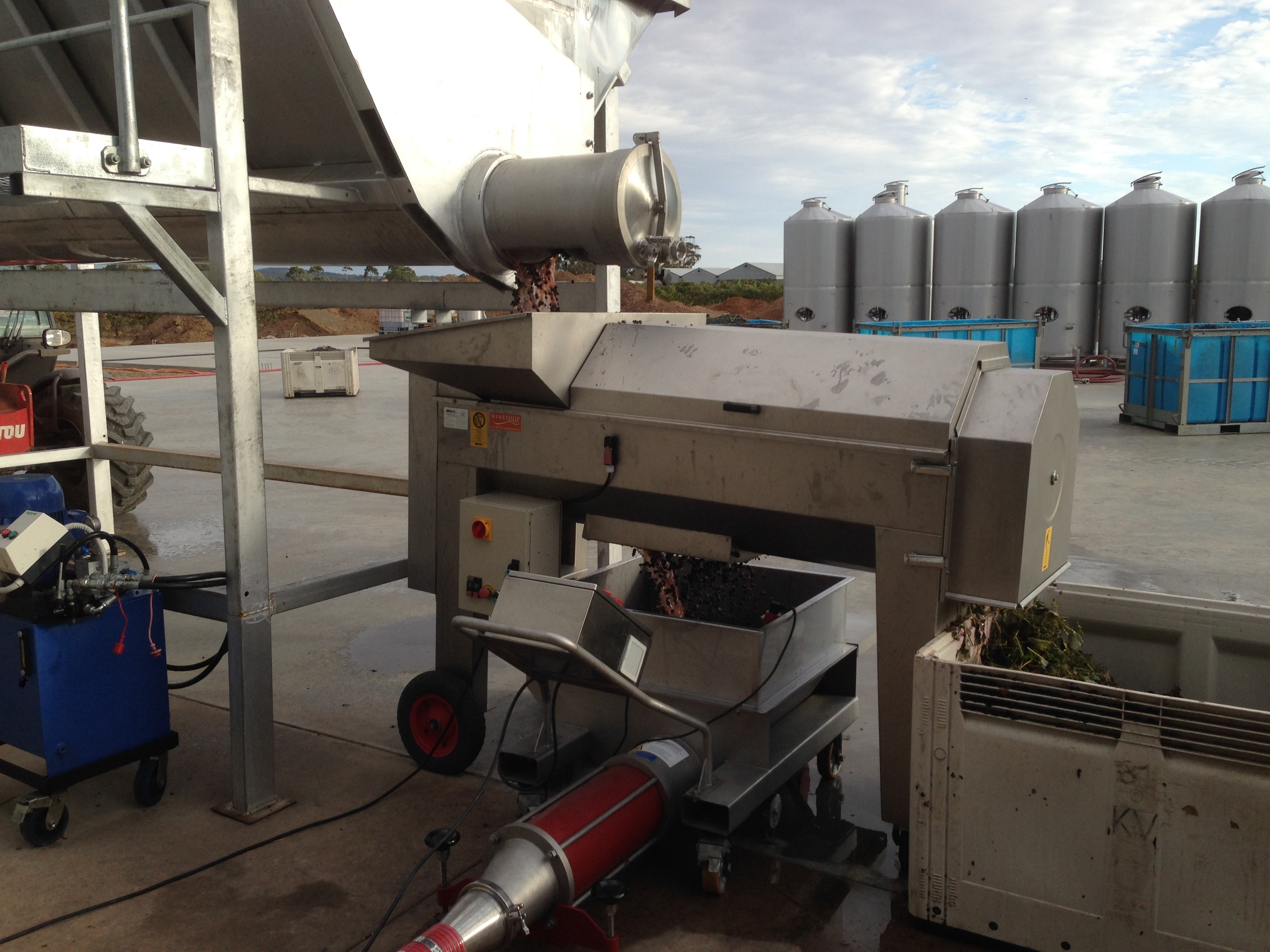

The compact and robust design of the Kiber NTE progressive cavity pump makes it ideal for transferring whole or destemmed grapes. Due to the cavity pumps design, it can be installed right under the destemmer.

  • highly versatile
  • easy to clean
  • hopper with drain
  • robust construction
  • motor: three-phase 230 / 400 V (3 kW), 400 / 690 V (>3 kW), 50 Hz, IP-55
  • helical-bevel gear units

WORKING PRINCIPLE

How do these pumps operate?

A cavity pump is a type of positive displacement pump. Unlike centrifugal pumps, these variations can theoretically produce the same flow at a given speed regardless of the discharge pressure. This creates a constant flow pump machine which has a great deal of practical uses in business.

Friction between the rotor and the stator creates a vacuum in the inlet area thereby helping the entry of the product into the pump. The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transports the product to the outlet.

  • rotary pump – This makes the pump very efficient because it naturally moves air from the lines. This eliminates the need to bleed the air from the lines manually

  • self-priming pump – Just like a centrifugal pump, it uses an air-water mixture to reach a fully primed pumping condition

  • can produce the same flow rate at a given speed

  • perfect for transporting whole or de-stemmed grapes

APPLICATIONS

  • wine industry
  • food industry

Q&As

Where do you deliver and what is your estimated shipping times?

At Global Pumps, we understand how important it is for you to receive your order as quickly as possible. That's why we strive to provide speedy delivery to your door, no matter where you are located across Australia.

Below is a guideline of how long it takes to ship our products to some of Australia's major cities. Of course, we can also deliver elsewhere around the nation, so if your location isn't mentioned don't worry, just talk to the team at Global Pumps!



Location: Shipping time frame:
Melbourne 1-2 days
Sydney 2-3 days
Brisbane 2-4 days
Perth 2-4 days
Adelaide 1 day
Kalgoorie 3-5 days
Mt Isa 3-5 days



PRODUCT INFORMATION

These pumps are perfect for the winery industry, due to the features included in this progressive cavity pump.

  • pump mounted on trolley

  • EC electric panel with ON/OFF switch, inverter and emergency stop push button

  • standard connection: spherical coupling

  • rotary wheels with brakes

  • red painted RAI3003

NOT SURE WHERE TO START

Guide To Selecting the Best Pump

If you need some guidance on how to select the right pump then you’re not alone! There’s such a wide range of pumps in Australia, from centrifugal pumps to hose pumps to diaphragm pumps. The options available to you can make it a difficult choice, so we’ve created this special guide to help step you through the process of selecting the ideal pump for your requirements.

Enquire here for more information or to request a quote:
