HIGH VISCOSITY DRUM PUMP

TP-700 SR high viscosity drum pump
TP-700 DRE high viscosity drum pump
TP-700 DRA high viscosity drum pump
TP-700 SR high viscosity drum pump
TP-700 DRE high viscosity drum pump
TP-700 DRA high viscosity drum pump

High Viscosity Drum Pumps for Thick Liquids

High Viscosity Drum Pumps provide a powerful and efficient solution for transferring thick, viscous liquids from drums, IBCs, and other containers. Designed for permanent or portable use, this range is ideal for handling pastes, creams, gels, honey, syrup, and other high-viscosity substances—up to 100,000 mPas (cP). Whether you're decanting glue, tomato paste, or cosmetic creams, these pumps offer safe and consistent performance.

Features of the high viscosity drum pump range:

  • Suitable for viscosities up to 100,000 mPas (cP)
  • Eccentric screw design for continuous, low-shear pumping
  • Electric and pneumatic motor options, including 240 V and three-phase models
  • Modular and interchangeable system for pump tubes and motors
  • Available for 200 L drums, 1000 L IBCs, and larger containers
  • Tube materials: NBR, NBR-lite, Hypalon, Viton, EPDM and PTFE
  • Head capacities: 60 m (single stage), 120 m (double stage)

APPLICATIONS

High viscosity drum pumps are ideal for transferring thick, viscous liquids in industries such as food and beverage, cosmetics, pharmaceuticals, chemicals, and manufacturing.

Common applications include pumping:

  • Soaps
  • Jam
  • Tomato paste
  • Glues
  • Sauces
  • Shampoo
  • Fats and lubricants
  • Refrigerants
  • Honey
  • Paste
  • Gel
  • Chocolate mass
  • Syrup
  • Latex-based paint
  • Resins
  • Varnishes
  • Silicones
  • Polymers

PRODUCT INFORMATION

Techniflo’s high viscosity drum pumps are specifically engineered to handle thick, hard-to-transfer liquids such as soaps, creams, glue, resins, and food-grade products like tomato paste and honey. Featuring an eccentric screw design, these pumps provide a reliable and efficient solution for decanting, batching, and transferring high-viscosity fluids—ideal for demanding industrial and food processing applications.

Each high viscosity barrel pump is available with pump tube lengths to suit common container sizes, including 200 L drums and 1000 L IBCs, with extended tube options available for larger vessels.

Techniflo pumps are compatible with both electric and pneumatic motors, including 240 V and three-phase electric motor options. Safety features such as automatic startup prevention are built in for added peace of mind.

Pump tubes are available in a variety of chemical-resistant materials—NBR, NBR-lite, Hypalon, Viton, EPDM, and PTFE—to ensure compatibility with a wide range of substances. Head capacities include 60 m (single stage) and 120 m (double stage), making these pumps ideal for even the most viscous applications.

From food production to cosmetics, a Techniflo high viscosity electric drum pump delivers reliable performance and helps streamline your liquid handling processes.



High Viscosity Drum Pump Range

TP-700 SR high viscosity drum pump

TP-700 SR

The TP-700 SR is a durable, high viscosity drum pump designed for liquids with specific gravity up to 1.3. It can be driven by either electric universal or air operated motors. Suitable for decanting low to medium-viscosity products, such as lubricants, soaps, or light pastes.

Specifications for the TP-700 SR:

  • Viscosity: Up to 10,000 cP
  • Motor power: 825 W (electric) or 600 W (air operated)
  • Flow rate: 12/25/50 L/min
  • All pump parts are in stainless steel 316 Ti; stator materials are adapted to the pumped medium and available in NBR, NBR-food grade, Viton, Hypalon, EPDM or PTFE
  • Simple, tool-less tube changeover
  • Multiple pumping head options.
TP-700 DRE high viscosity drum pump

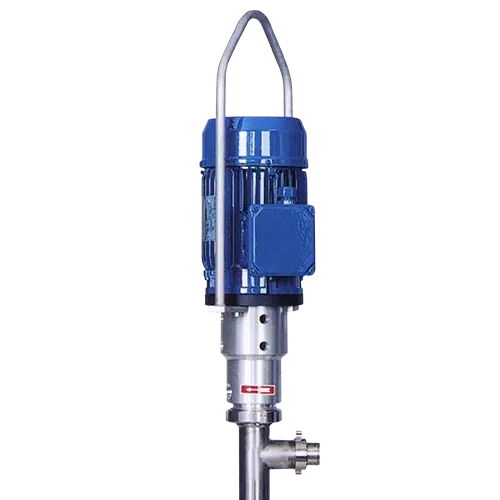

TP-700 DRE

The TP-700 DRE is a robust high viscosity electric drum pump, ideal for continuous use in demanding applications. It handles highly viscous fluids such as glue, cream, paste, gel, chocolate mass, and tomato paste with ease. A great choice for those seeking a versatile glue drum pump or drum pump for tomato paste.

All pump components in contact with the medium are made from stainless steel SS 316 Ti. Stators are adapted to the medium and are available in NBR (Buna), NBR light (food grade), VITON (FKM), Hypalon (CSM), EPDM or PTFE.

Specifications for the TP-700 DRE:

  • Viscosity: Up to 100,000 cP
  • Motor power: 0.37–2.2 kW
  • Flow rate: 12/25/50 L/min
  • Pump tube length: Minimum 700 mm
  • Pump tube diameter: 54 mm
TP-700 DRA high viscosity drum pump

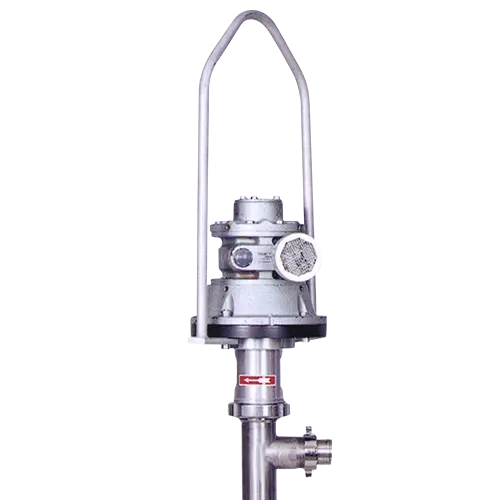

TP-700 DRA

The TP-700 DRA is a powerful, solidly built high viscosity barrel pump using an eccentric screw mechanism for low-shear pumping. Suitable for pastes, tomato paste, jams, sauces, and other shear-sensitive fluids. It’s driven by TP-AIR compressed air motors and performs reliably in food, cosmetic, and chemical applications.

All pump components in contact with the medium are made from stainless steel SS 316 Ti. Stators are selected based on the medium and are available in NBR (Buna), NBR light (food grade), VITON (FKM), Hypalon (CSM), EPDM or PTFE.

Specifications for the TP-700 DRA:

  • Viscosity: Up to 100,000 cP
  • Motor power: 0.5–1.5 kW (TP-AIR 4/6/8)
  • Flow rate: 12/25/50 L/min
  • Pump tube length: Minimum 700 mm
  • Pump tube diameter: 54 mm
  • Weight: 15–25 kg
Enquire here for more information or to request a quote:
