Verderflex peristaltic hose pump
|
|
|
Features
- largest hose pump range in the world
- pump slurries up to 80% solids
- no valves or seals in the process liquid
- very low shear for sensitive fluids
- accurate dosing to a ± 2%
- dry running with no damage
- self-priming from a 9.5 m suction lift
Applications
- thickener underflow
- tailings disposal
- centrifugal feed
- highly abrasive slurries
- sheer sensitive fluids
- liquids mixed with air
- flocculant dosing
- slurry sampling
Download: Verderflex overview brochure
|
|
|
|
|
|

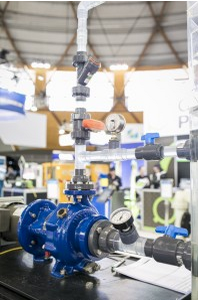

Techniflo magnetic drive pump
|
 |
Features
- magnetic drive meaning no mechanical seal
- fluid is completely contained – no more leaks
- flows up to 340 m3/hr, heads up to 152 m
- pressures up to 20.6 bar
- conforms to ASME/ANSI B73.1M
- patented world-first thrust balanced design
Applications
- suitable for temperatures from -29º to 121ºC
- highly corrosive reagents
- hyper saline solutions
- up to 30% slurries
- waste or contaminated chemicals
Download: Techniflo mag overview brochure
|
|
|
|
|
|

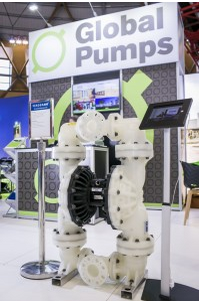

Verderair air operated diaphragm pump
|
 |
Features
- air operated, no electricity required
- self priming and dry running
- available in various plastic and
- metallic materials
- portable
Applications
- aggressive and volatile liquids
- thick, viscous fluid
- underground dewatering
- liquids containing silt and solids
Download: Verderair overview brochure
Product page: Verderair Air Operated Diaphragm Pumps
|
| |
|
|
|
SlurryPro centrifugal slurry pump
|
 |
Features
-
robust design with quick-change wearing parts
-
available in hard metal and rubber lined
-
flows up to 8300 m3/hr
-
pressures up to 9 bar
-
vertical pump design also available
-
interchangeable parts to fit other manufacturers
Applications
Download: Slurrypro overview brochure
Product page: SlurryPro Slurry Pumps
|
| |
|
|
|
VerderHUS screw centrifugal pump
|
 |
Features
-
abrasion resistant
-
adjustable impeller maintains long term efficiency
-
constant power as viscosity changes
-
dry well or submersible or vertical spindle pumps
-
gentle low shear pumping action minimises flocculent damage
-
high efficiency pumping, BEP > 70%
-
large diameter solids pumping
-
low NPSHr reduces cavitation damage
-
minimal clogging pumping long fibred fluids
Applications
-
Chemical processing
-
Food & beverage
-
Industrial processing
-
Mining
-
Paper & pulp
-
Petfood processing
-
Power stations
-
Slaughterhouses
-
Waste water treatment
Download: VerderHUS overview brochure
Product page: VerderHUS Screw Centrifugal Pumps
|
|
|
|
|
|

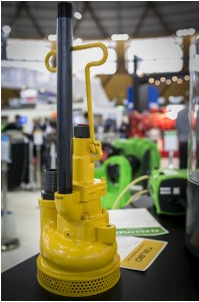

Talbo air operated submersible pump
|
 |
Features
- very compact design
- no electricity required
- robust design for arduous situations
- no cables to pull out or drive over!
- will pump down to 22 mm ensuringmaximum drainage
Applications
- underground dewatering
- ideal for areas where electric sparksmay risk explosion
- draining cargo holds
- hazardous and/or restricted access areas
Download: Talbo overview brochure
Product page: Talbo Air Operated Diaphragm Pumps
|
| |
|
|
|

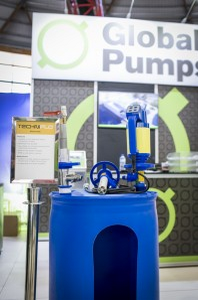

Techniflo drum pump
|
|
Features
- available in hand operated, electric or pneumatic models
- lightweight and portable
- low voltage cut out (prevents pump from restarting automatically)
- different tube lengths available
- ATEX air and electric versions
Applications
- suitable for a wide variety of liquids from oils and fuels to highly viscous fluids
- for decanting from drums and IBCs
Download: Techniflo drum overview brochure
Product page: Techniflo Drum Pumps
|
| |
|
|
|
Affetti non-metallic chemical process pump
|
|
|
Features
- non-metallic lined centrifugal pumps
- range of chemical resistant materials including PP, PEHD, PVC, PVDF, PTFE and fibreglass resin
- flows up to 2000 m3/hr
- heads up to 120 m
- conforms to DIN/EN 22858 - ISO 2858 and ASME/ANSI B73.1M
Applications
- aggressive and corrosive liquids
- aliphatic or aromatic solvents
- strong chemicals
- sea water
Download: Affetti overview brochure
Product page: Affetti Fibreglass Pumps
|
|
|
|
|
|

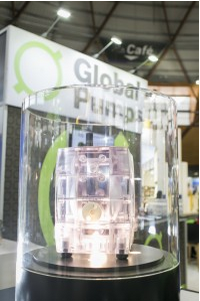

Verderair PURE harsh liquids and severe process pumps
|
 |
Features
- designed for heavy-duty operation
- suitable for severe process conditions
- fewer material stress points due to the solid block construction
Applications
- high or low viscosity, abrasive or thixotropic, hazardous or toxic
- handles a variety of liquids
- sludge, acids, alkalis, solvents, slurries, emulsions or resins
- recirculation of cutting agents for silicon ingots (slurry of glycol with powdered silicon carbide)
Download: Verderair Pure overview brochure
|
|
|
|
|
|
Verderflex Vantage 5000 peristaltic tube pump
|
 |
Features
- turn-down capability 4096:1
- highly accurate stepper controlled dosing
- Max. flow 4000 ml/min
- Max. pressure 7 bar
- spring loaded rotor
- on-board storage for 99 dosing programs
- low maintenance, one wearing part
- stackable robust design
- remote control options such as Wi-Fi, SCADA, PROFIBUS or Modbus
Applications
- water treatment
- food flavouring
- chemical dosing
- pharmaceutical
- brewery
Product page: Vantage 5000 peristaltic tube pump page.
|
|
|
